China Cangzhou Shengsen offers Timber Connector Sheet Metal Parts Nail Plate in Q235 carbon steel with hot galvanized Z275g coating. Toothed design enables hammer-in installation, ensuring stable timber connections for roof trusses, wooden frames and prefabricated structures. ISO 9001 certified and customizable.
Material:
Galvanized SteelThickness:
1mm,1.5mm,etcSize:
75*50,100*50,100*100,150*100 Or Custom SizeSurface Treatment:
Hot Galvanized / Powder CoatingCangzhou Shengsen Metal Products Co., Ltd. is a professional manufacturer supplying Timber Connector Sheet Metal Parts Nail Plate for timber construction, wooden structures, and customized hardware applications. Manufactured from Q235 carbon steel with hot-dip galvanized surface treatment, this metal connector plate provides a practical solution for joining timber components and reinforcing wood connections. With precision stamping technology, advanced CNC equipment, and ISO 9001 certified quality management, Shengsen delivers reliable timber connectors and sheet metal parts for customers worldwide.

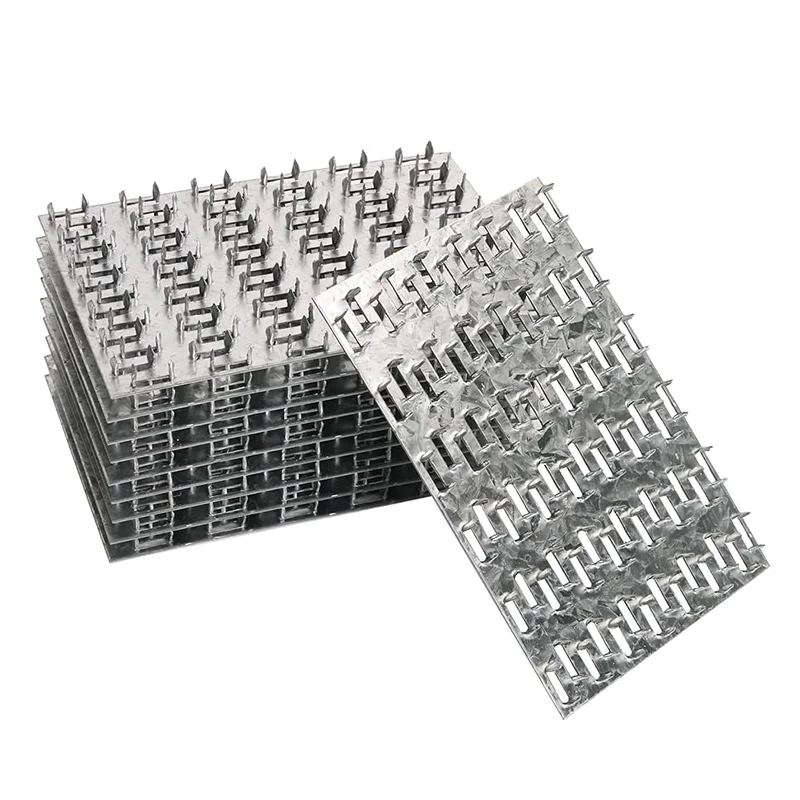

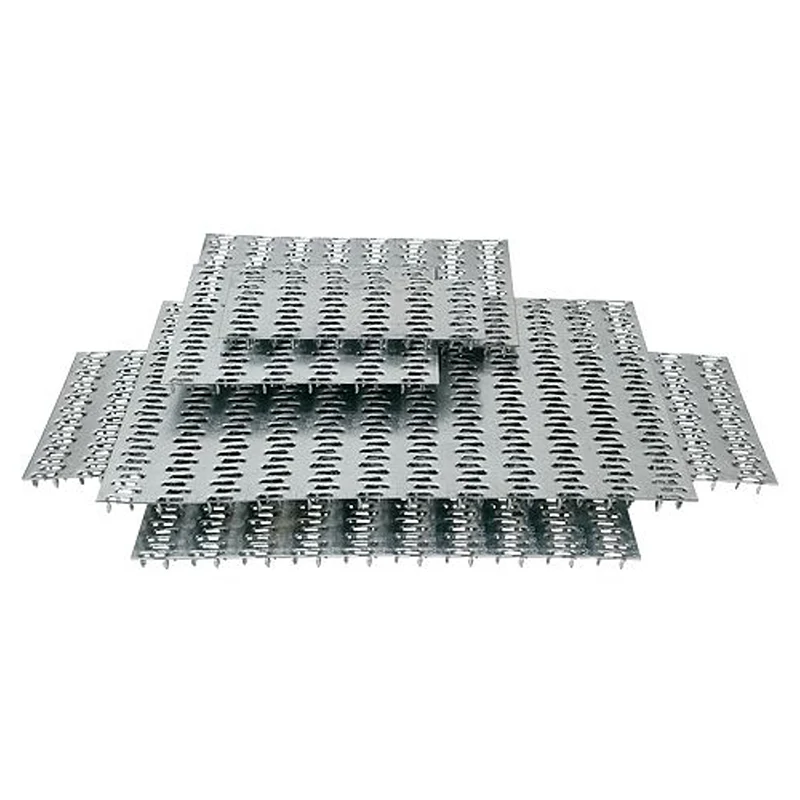

The Timber Connector Sheet Metal Parts Nail Plate features a toothed design that allows the connector to be embedded into wooden members through hammer installation. By distributing fastening points across the connection area, it helps improve the stability of timber joints and is widely used in roof trusses, wooden frames, prefabricated structures, and other wood construction projects.
| Item | Specification |
|---|---|
| Product Name | Timber Connector Sheet Metal Parts Nail Plate |
| Material | Q235 Carbon Steel |
| Surface Treatment | Hot Galvanized (Z275g) |
| Available Sizes | 50mm × 100mm × 1mm; 75mm × 50mm × 1mm; 100mm × 100mm × 1mm; 150mm × 100mm × 1mm |
| Manufacturing Process | Precision Stamping, CNC Machining, Sheet Metal Processing |
| Application | Timber Structures, Roof Trusses, Wooden Frames, Prefabricated Buildings |
The Timber Connector Sheet Metal Parts Nail Plate is designed for different wood connection applications where stable and efficient joining methods are required. It is commonly used in timber frame construction, wooden roof trusses, floor systems, and prefabricated wooden structures.
For a complete wood connection system, this nail plate is often used together with joist hangers, angle brackets, timber connector hurricane ties, and timber anchors.
The installation process of this Timber Connector Sheet Metal Parts Nail Plate is simple and suitable for various timber joining applications. Place the nail plate on the two wooden blocks that need to be connected, ensuring that the nail teeth are distributed across both timber sections. Then use a rubber mallet or wooden mallet to hammer the connector into the wood until it is firmly embedded.
Proper positioning during installation helps ensure that the connector plate achieves effective contact with both wooden components and provides a stable connection for the assembled structure.
Installation Tip: Keep the nail plate perpendicular to the timber surface and distribute the teeth evenly on both sides of the joint, so that the load is transferred evenly and the wood fibre is not damaged locally.

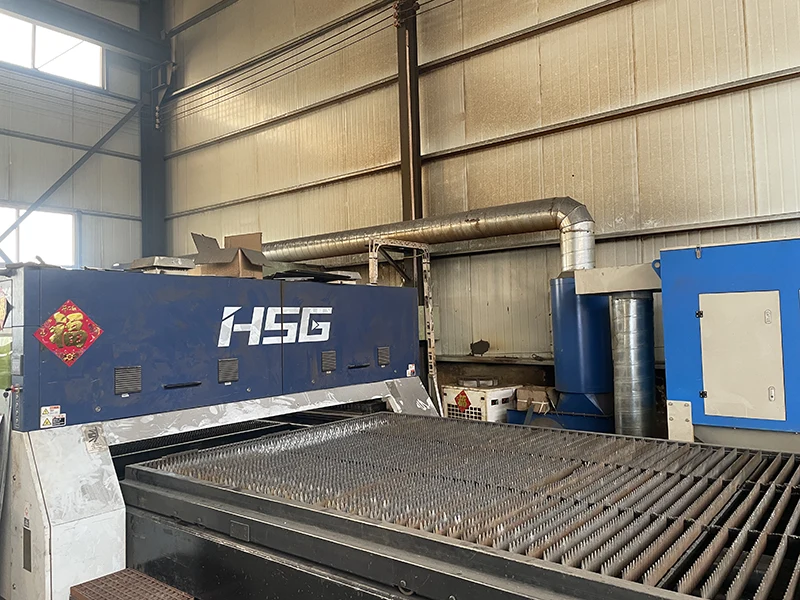

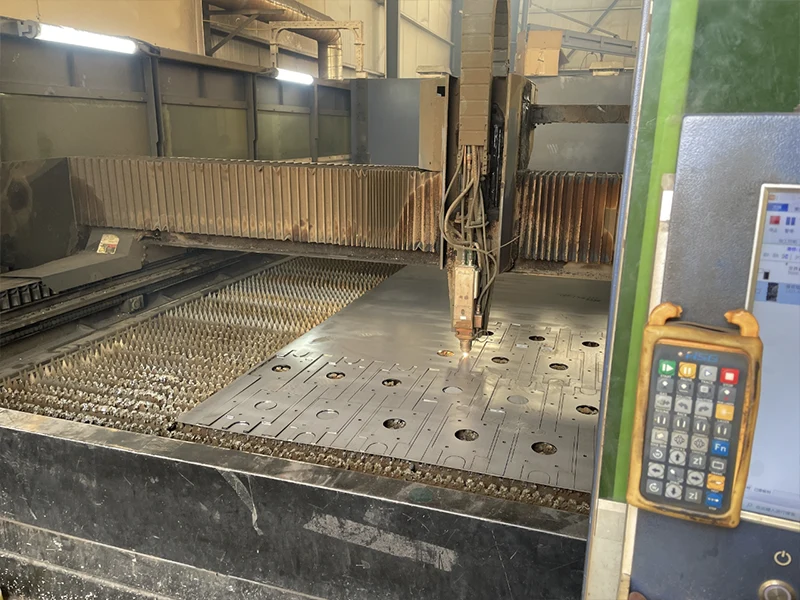

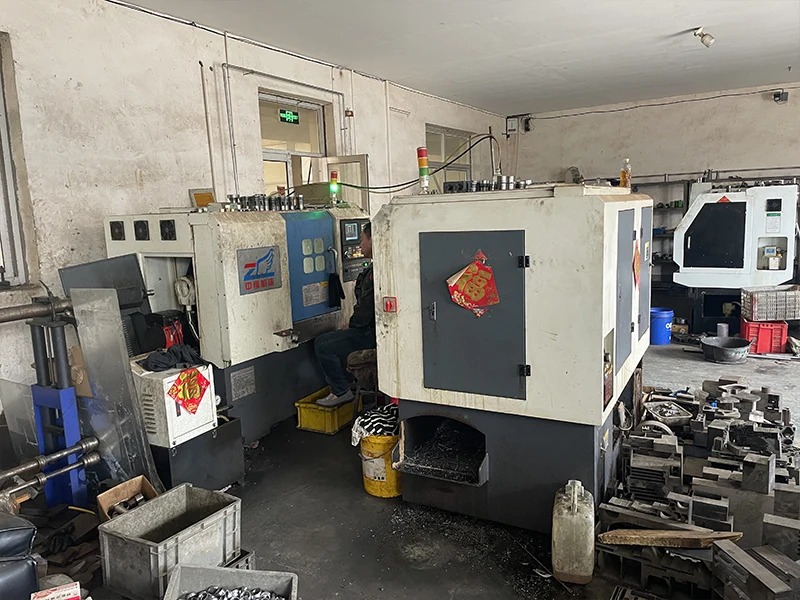

As an experienced hardware manufacturer, Cangzhou Shengsen Metal Products Co., Ltd. provides OEM and customized manufacturing services for Timber Connector Sheet Metal Parts Nail Plate and other precision metal components. The factory is equipped with stamping machines, wire-cutting machines, CNC machine tools, laser cutting machines, and professional testing instruments to support efficient production.
Customers can request customized dimensions, designs, and production requirements based on different timber connection applications. Shengsen follows a comprehensive quality management system, and its timber connectors, greenhouse connectors, and sheet metal parts are manufactured under ISO 9001 certified standards. More details are available on the custom processing services page.
Quality is controlled throughout the production process, including raw material inspection, precision processing, dimensional checking, and finished product evaluation. With professional manufacturing equipment and experienced technical teams, Shengsen ensures consistent quality for every batch of Timber Connector Sheet Metal Parts Nail Plate.
Located in Nanpi County, Cangzhou City, Hebei Province, known as the "Hardware Capital of China", Shengsen benefits from a mature hardware manufacturing supply chain and advanced production resources. The company supplies timber connectors, greenhouse accessories, and sheet metal parts to domestic and international markets, including customers in North America and Australia. You can learn more on our About Us page.
Q1: What material is used for the Timber Connector Sheet Metal Parts Nail Plate?
A: The nail plate is manufactured from Q235 carbon steel and finished with hot galvanized Z275g coating. This combination provides reliable mechanical strength and improved corrosion resistance for long-term use in timber structures.
Q2: What sizes are available for the timber connector nail plate?
A: Standard sizes include 50mm × 100mm × 1mm, 75mm × 50mm × 1mm, 100mm × 100mm × 1mm, and 150mm × 100mm × 1mm. Customized sizes, tooth patterns, and thicknesses can also be produced according to your drawings or samples.
Q3: Can Shengsen customize timber connector sheet metal parts?
A: Yes. Shengsen provides OEM and ODM services for sheet metal stamping, including custom dimensions, hole positions, material selection, and surface treatment. Our engineering team can review your technical requirements and suggest the most suitable production solution.
Q4: Where are timber connector nail plates commonly used?
A: They are widely used in timber frames, roof trusses, wooden houses, prefabricated structures, floor systems, and other wood construction projects that require strong and reliable connections between timber components.
Q5: How do I install the nail plate correctly?
A: Place the nail plate across the joint of two timber members, ensuring the teeth are evenly distributed on both sides. Use a rubber mallet or wooden mallet to hammer the plate into the wood until it is firmly embedded. Avoid striking with a steel hammer directly, as this may deform the teeth.
Q6: What is the minimum order quantity and delivery time?
A: For standard sizes, the MOQ is usually 1,000 pieces. For customized sizes, the MOQ depends on the complexity of the drawing. Sample lead time is about 7–10 days, and mass production is normally 15–25 days after order confirmation.
Q7: Do you provide quality certificates or test reports?
A: Yes. Shengsen operates under an ISO 9001 certified quality management system. We can provide material certificates, dimensional inspection reports, and surface treatment test reports as required. Third-party inspection is also acceptable.
Q8: Can the nail plate be used with other timber connectors?
A: Absolutely. It is often combined with joist hangers, angle brackets, hurricane ties, and timber anchors to build a complete and stable wood connection system.
Send us your drawing, size or sample requirement — our engineers will reply with a quotation within 24 hours.
