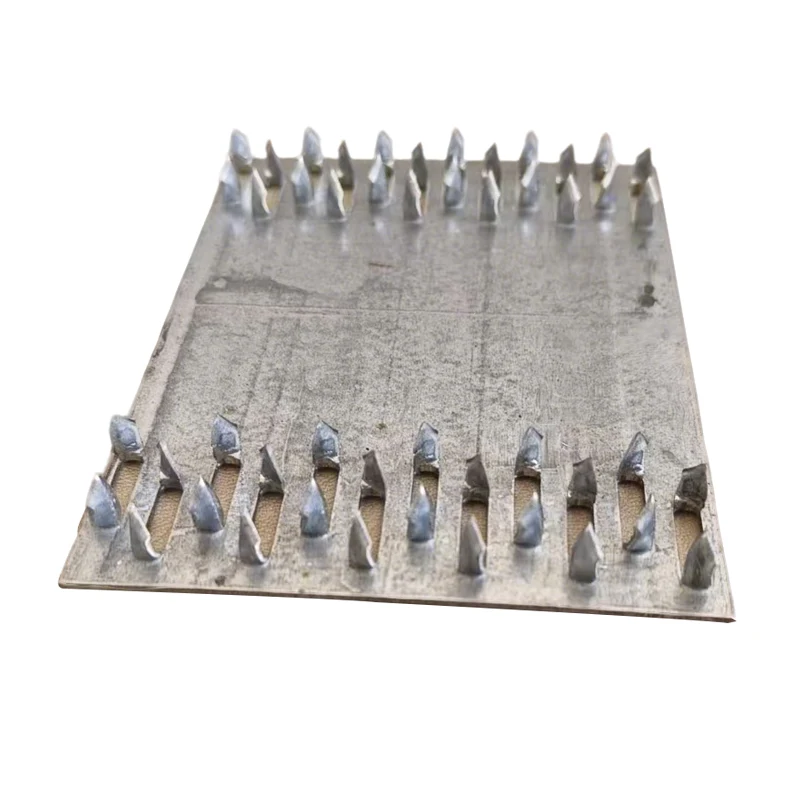

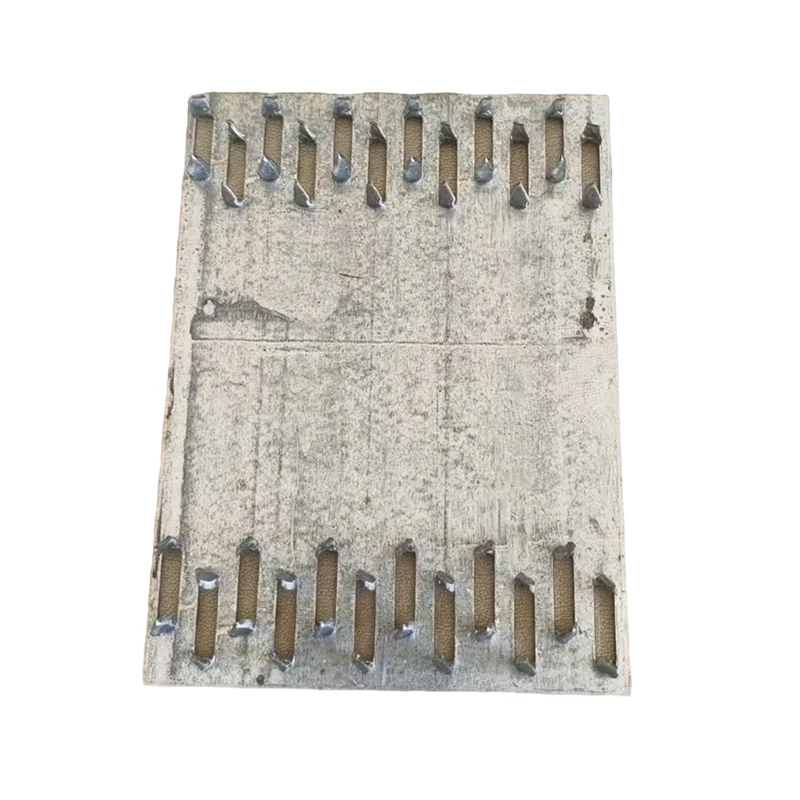

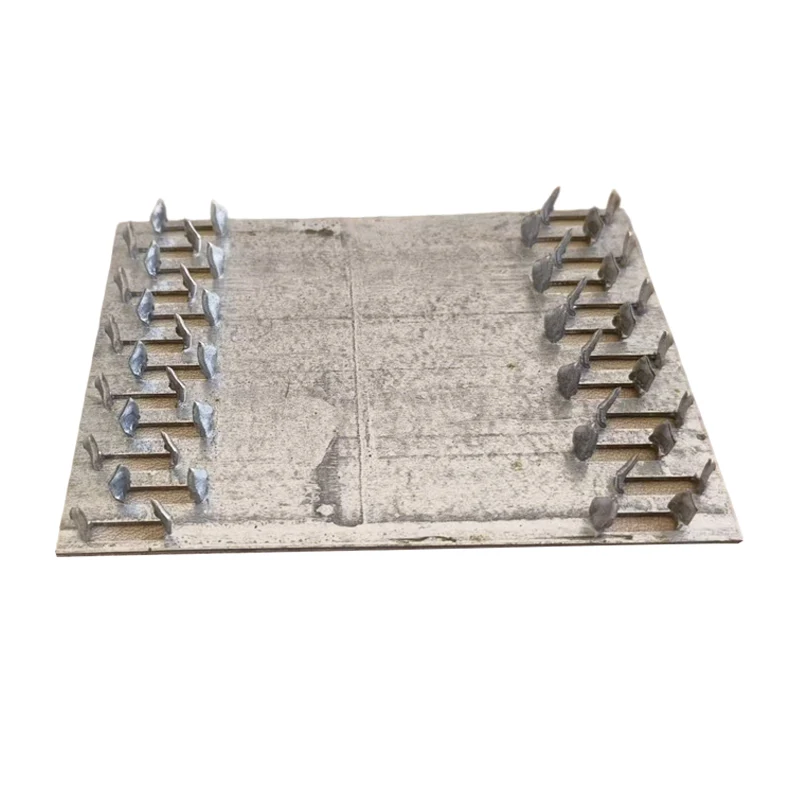

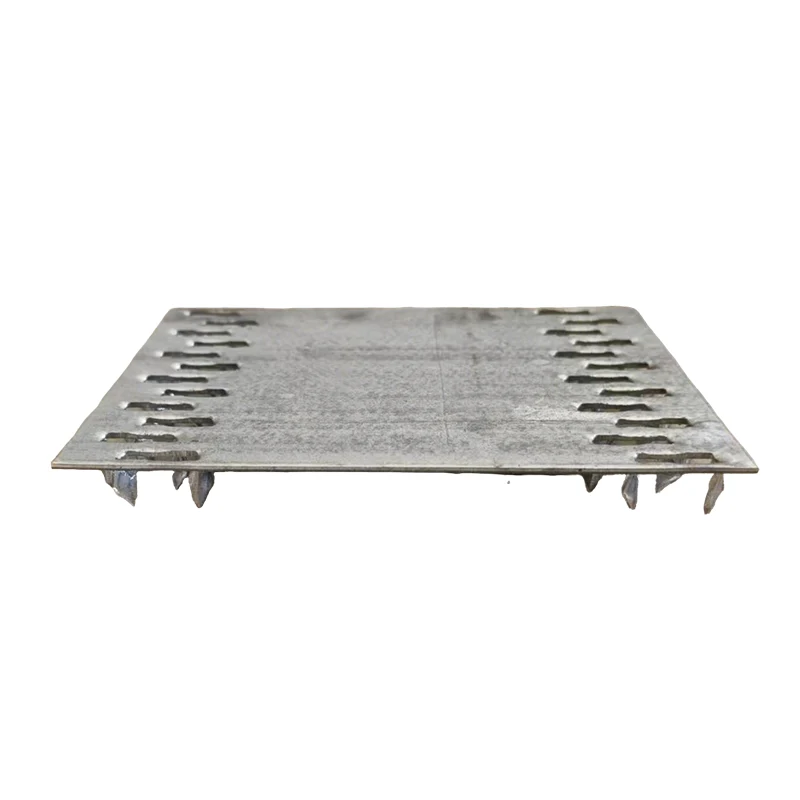

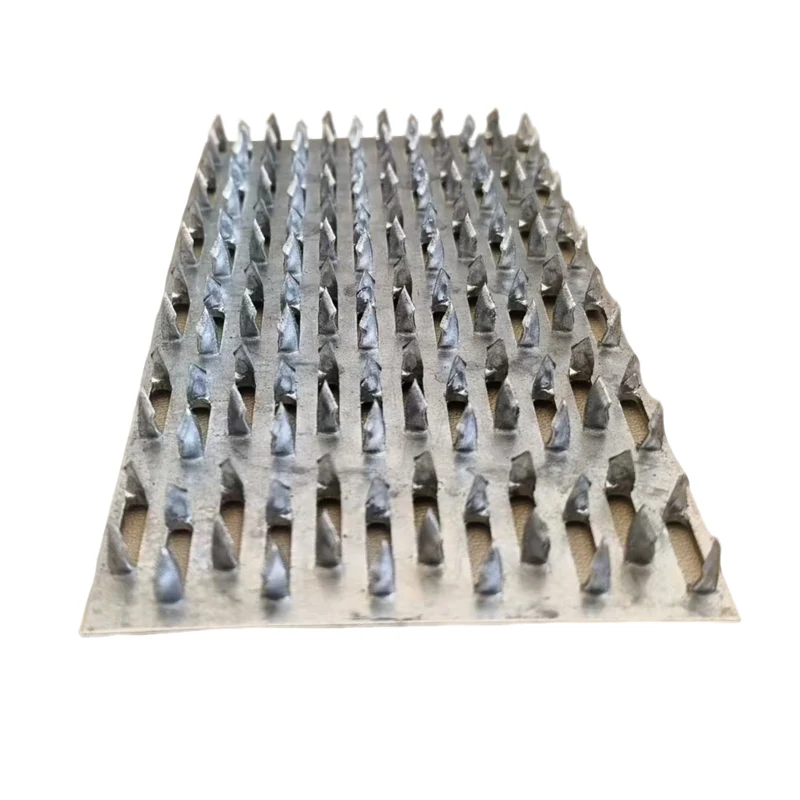

Timber Connector Heavy Duty Nail Plate

The Timber Connector Heavy Duty Nail Plate is a structural connector designed for high-load timber joints, widely used in prefabricated wood construction and truss systems. Manufactured by S-SEN Metal, this product focuses on improving connection strength, installation efficiency, and structural consistency in batch production environments.

Core Structural Design

• Tooth Geometry Design: Each tooth is formed with controlled angle and depth to penetrate timber fibers and create multi-directional resistance
• Load Transfer Mechanism: Converts point load into distributed load across the plate surface
• Embedded Connection: Teeth embed into wood under pressure, forming a mechanical interlock instead of surface fastening
• Plate Rigidity: Thickness range (1.0–1.5mm) ensures balance between flexibility and structural stiffness

Engineering Value

• Reduces variability caused by manual woodworking
• Supports standardized production of timber components
• Improves overall frame integrity under tensile and shear forces
• Enables factory prefabrication + on-site assembly workflow
• Helps control project timelines and labor cost

Performance Advantages (Compared to Alternatives)

• Vs Traditional Mortise & Tenon: eliminates complex cutting, improves repeatability
• Vs Standard Flat Plates: tooth engagement provides deeper structural anchoring
• Vs Screws/Bolts: faster installation in batch processing, no pre-drilling required in many cases
• Vs Non-Galvanized Plates: longer service life in humid or outdoor conditions

Product Specifications

Application Scenarios

• Prefabricated roof truss systems
• Light-frame timber housing
• Engineered wood structures (multi-joint nodes)
• Agricultural buildings and greenhouses
• Outdoor timber frameworks (fencing, decking support)

Typical Use Case

• Roof Truss Factory: Timber Connector Heavy Duty Nail Plate used with hydraulic press to connect multiple timber members simultaneously
• Prefab Housing Projects: ensures consistent joint strength across large-volume housing units
• Export Construction Projects: simplifies installation for overseas assembly teams

Manufacturing & Quality Control

• High-precision stamping molds for consistent tooth formation
• CNC processing and laser cutting for dimensional accuracy
• Controlled galvanizing process (Z275 coating standard)
• ISO 9001 quality management system
• Batch inspection for thickness, coating, and structural integrity

Installation Method

• Press-in installation using hydraulic or mechanical press (recommended for structural use)
• Manual nailing for light-duty or temporary fixing
• Applied on one or both sides depending on load requirements

Buyer Concerns & Practical Answers

• Load Capacity Concern:
  Depends on timber type, plate size, and installation method. Engineering calculation or testing is recommended for structural projects.
• Corrosion Resistance:
  Z275 galvanized coating is suitable for most outdoor environments; stainless steel option available for higher corrosion requirements.
• Consistency in Bulk Orders:
  S-SEN Metal uses standardized molds and automated stamping to maintain uniformity across batches.
• Customization Flexibility:
  Supports custom thickness, plate size, tooth density, and hole layout for project-specific needs.

FAQ

• Q: Can Timber Connector Heavy Duty Nail Plate be reused?
  A: Not recommended, as teeth deformation occurs after installation.
• Q: Is pre-drilling required?
  A: No for press installation; may be required in some manual applications depending on wood density.
• Q: What affects connection strength?
  A: Timber density, moisture content, plate size, and installation pressure all influence performance.
• Q: Can it be used in structural engineering projects?
  A: Yes, commonly used in engineered wood systems, but requires proper design calculation.

Supplier Strength

• Located in Nanpi County, Hebei – established hardware manufacturing base
• Integrated factory with stamping, cutting, and surface treatment capabilities
• Export experience in North America and Australia markets
• Supports OEM/ODM and stable bulk supply
