S-SEN Timber Anchors are indispensable anchors in building decoration, used to fix wooden structural columns into concrete. We can provide a variety of specifications of Timber Anchors according to the different needs of special projects, so as to improve the structural stability and safety of the project.
Excellent structural strength
High standard steel: made of high quality carbon steel or stainless steel to ensure that the connector itself has very high tensile and shear strength.
Engineering design: The geometry, which has been precisely calculated and tested, can effectively disperse the load and maximize the bearing capacity of the connection nodes.
Excellent corrosion resistance
Double coating anti-corrosion: carbon steel products are usually treated with thick wall hot-dip galvanizing to provide long-term protection.
Stainless steel options: 304 or 316 stainless steel is provided, which is perfect for high corrosion environment such as coastal and humid environment, so that rust spots are free.
Convenient installation experience
Pre-drilled hole position: The precise hole position design is convenient for the use of universal specification screws or bolts for fixation.
Concealed design: Most products are hidden inside or at the junction of wood after installation, without affecting the appearance.
Simplified construction: Designed for modern construction processes, no complex processes are required to achieve strong connections.
A comprehensive solution
Diverse types: column cap, beam support, right-angle connection plate, cantilever bracket and other types are provided to meet different connection needs.
Rich specifications: cover a variety of sizes from light decorative woodwork to heavy structural wood.
| Category of Parameters | Define |
| Main Material | Carbon steel: ASTM A653 / SS Grade 550 (equivalent to Chinese Q550) with coatingStainless steel: ASTM A240 Grade 304 / 316 (Excellent for corrosive environments) |
| Surface Preparation | Hot-dip galvanized: ASTM A123/ ISO 1461 (Type 55-85µm, superior corrosion resistance)Powder coating: Optional, available in various RAL colors for aesthetic needs |
| Common Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm (Varies by product type and load requirement) |
| Use of Timber Dimensions | Connectors suitable for standard size wood (e.g. 2x4, 2x6, 4x4, 6x6 inches or 45x95, 95x95 mm, etc.) are available as required. |
Assessment load requirements: Consider the static and dynamic loads that the connection point needs to bear. Consider environmental conditions: outdoor use or humid environment. Select hot-dip galvanized carbon steel or stainless steel products.
Measure wood dimensions: Measure the cross-sectional dimensions of the wood to ensure that the connectors are sized to match.
Lightweight Wooden House Post Fasteners are used to secure lightweight railings or fence legs. They are available in standard sizes, but can also be customized in size and style to suit specific usage scenarios.

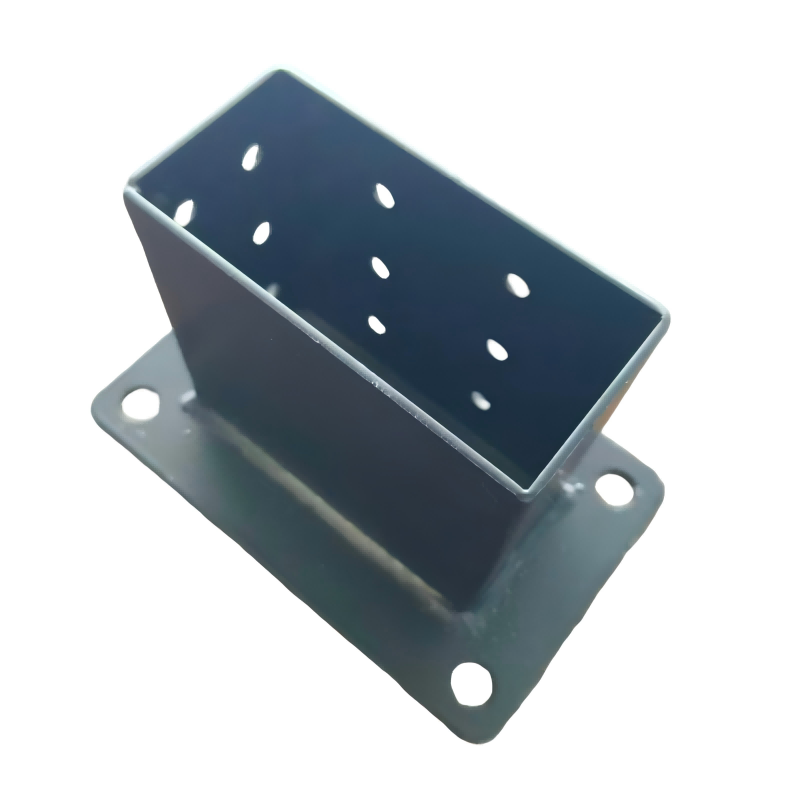

Pergola Brackets Wood Posts are used to secure wooden posts to the ground, wooden floors, or concrete floors, supporting wooden structures and making them more stable.

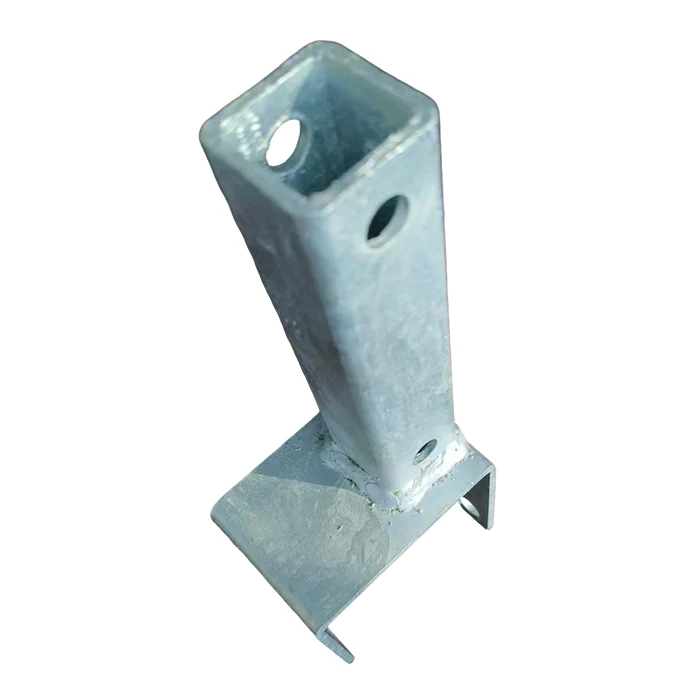

Heavy-Duty Ground Anchors are available in versions that can be applied to concrete surfaces and versions that can be applied to soil surfaces. Please send a message to our email address for more information.

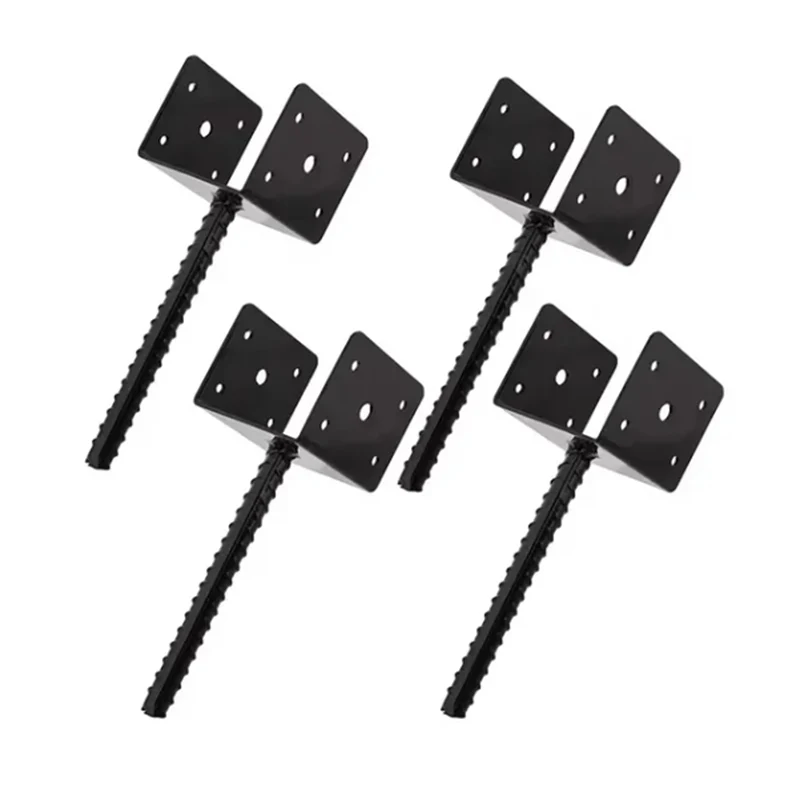

Ground anchors can be customized to suit specific usage scenarios, with a standard anchoring depth of 70cm. We can also customize sizes to meet your specific needs.

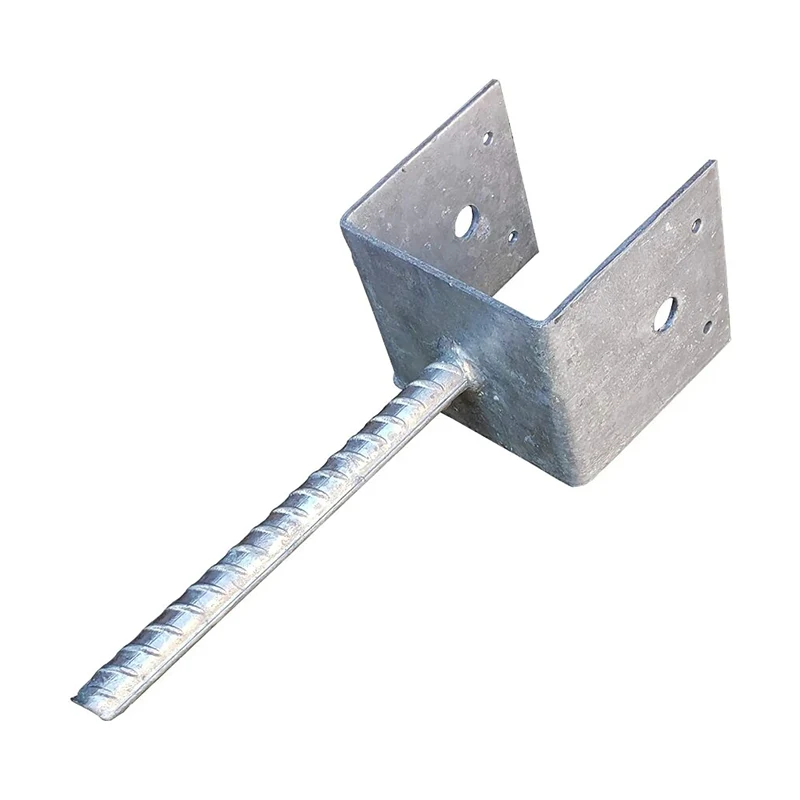

Timber Connector Concrete Anchors are designed to secure timber structures to concrete foundations, especially in projects requiring stable anchoring under load and environmental exposure. Manufactured by S-SEN Metal, this product focuses on improving pull-out resistance, structural stability, and long-term durability in wood-to-concrete connections.
Anchor bolts are available in versions suitable for concrete surfaces and versions suitable for soil. You can contact us for customization.
