Hurricane ties provide lateral stress to the structure and are often used to reinforce timber trusses. Smaller hurricane ties can also be used to reinforce furniture or shelves.
Material:
Carbon Steel SS304 SS316Package:
CartonSurface Treatment:
Hot GalvanizedSize1:
140mm*40mm*1mmSize2:
150mm*35mm*1mmSize3:

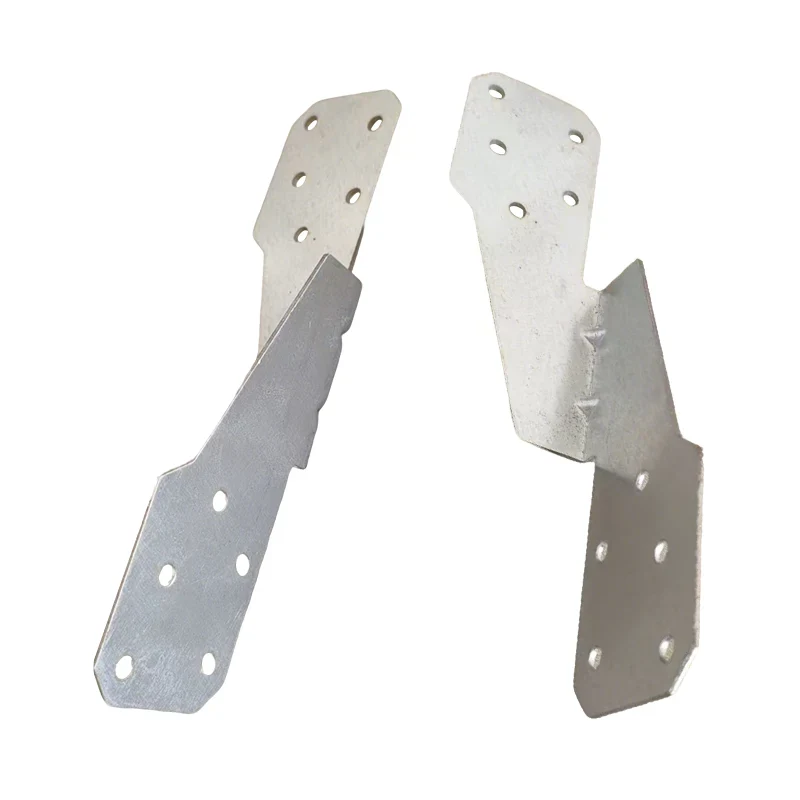

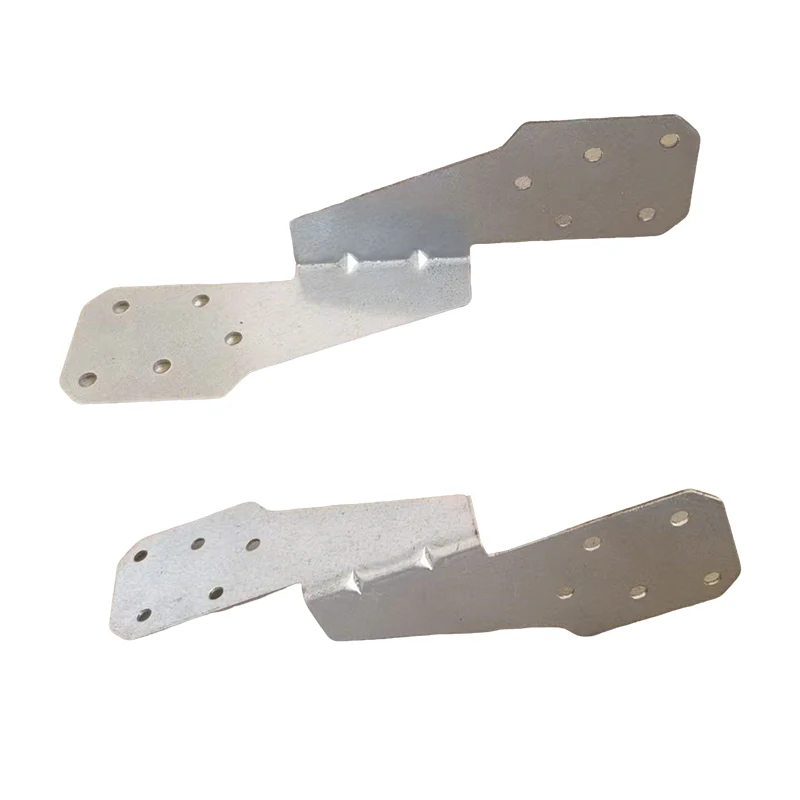

300mm*3mm*1.5mmTimber Connector Hurricane Ties are galvanized metal connectors engineered to secure and reinforce timber structures at critical joints. Manufactured from Q235 carbon steel with Z275g coating, and also available in SS304 and SS316 stainless steel, these hurricane ties provide reliable load transfer between beams, rafters, and supporting members in wood frame construction.
With hot-dip galvanized surface treatment and precision stamping, each tie offers dependable corrosion resistance and a clean, burr-free finish for fast, safe installation. Standard sizes cover light-duty furniture and shelf assemblies as well as heavier structural connections in wooden house beams.
| Size (mm) | Thickness | Typical Use |
|---|---|---|
| 140 × 40 | 1.0 mm | Cabinet, furniture and shelf connections |
| 150 × 35 | 1.0 mm | Light timber frames and storage shelving |
| 300 × 30 | 1.5 mm | Wooden house beams and structural reinforcement |
Attach the two long sides of the hurricane tie to the structure, drill the nails into the holes along the long sides, and ensure they are securely fastened.
For structural applications, the correct number of fasteners, tie position, and edge distance should be determined according to the connection design and applicable building requirements.
Installation Tip: Keep the tie flush against the timber surface and drive nails perpendicular to the wood grain to avoid splitting. For heavier loads, combine with joist hangers, angle brackets, and timber anchors to complete the connection system.
Hurricane ties are used for connecting and reinforcing wooden house beams, cabinets and other furniture, as well as storage shelves. Their compact geometry makes them suitable for both structural timber framing and lighter interior hardware applications.
For a complete timber connection system, hurricane ties are often used together with galvanized strap ties, timber connector nail plates, and other hurricane tie models.
Q1: What materials are available for the hurricane ties?
A: The hurricane ties are available in Q235 carbon steel with Z275g hot-dip galvanized coating, as well as SS304 and SS316 stainless steel for applications requiring higher corrosion resistance.
Q2: What sizes are available?
A: Standard sizes include 140mm × 40mm × 1mm, 150mm × 35mm × 1mm, and 300mm × 30mm × 1.5mm. Customized sizes can be produced according to drawings or samples.
Q3: How are hurricane ties installed?
A: Attach the two long sides of the tie to the structure, then drive nails into the holes along the long sides and make sure they are securely fastened. For structural work, follow the connection design and applicable building requirements.
Q4: What applications are hurricane ties suitable for?
A: They are commonly used for connecting and reinforcing wooden house beams, cabinets and other furniture, as well as storage shelves and other timber frame connections.
Q5: Can Shengsen customize hurricane ties?
A: Yes. Shengsen provides OEM and ODM services for stamping, including custom dimensions, hole positions, material selection and surface treatment. Send your drawing or sample for a production review.
Q6: Do you provide quality certificates or test reports?
A: Yes. Shengsen operates under an ISO 9001 certified quality management system and can provide material certificates, dimensional inspection reports and surface treatment test reports as required.
Send your drawing, size or sample requirement — our engineers will reply with a quotation within 24 hours.
