S-SEN Angle brackets are essential fasteners used in industrial manufacturing, architectural decoration, and furniture assembly to secure metal components at specific angles, typically 90°. We offer customizable, high-quality Angle Bracket products across our full range, designed to meet the unique requirements of your specialized projects.
1. Excellent strength and durability
High quality material: high strength carbon steel, stainless steel or aluminum alloy to ensure the strength of the material.
2. antiseptic finish
Provide hot galvanized, electro-galvanized, powder coating and other surface treatment methods, provide excellent corrosion protection layer.
3. Comprehensive product range
From small household angle brackets to heavy thickened industrial angle brackets, standard 90°angle brackets, 135°angle brackets, adjustable angle brackets, and reinforced angle brackets can be customized.
4. Easy installation
Pre-drilled hole position: preset hole position before delivery for easy installation and positioning.
High compatibility: hole position design is compatible with standard specification bolts and screws.
| Parameter category | Define |
| Standard Material | Carbon steel: ASTM A36/SAE 1008/ DIN 1.0038 (National standard Q235)Stainless steel: ASTM A240 Grade 304/316 (Japanese standard SUS304/316)Aluminium alloys: ASTM B221 / EN 755-2 / DIN 3.3206 (AA6061 / AA 6063) |
| Surface Preparation | Electro-galvanized: ISO 4042 (5-8 microns)Hot-dip galvanized: ASTM A123/ ISO 1461 (45-85 μm)Powder coating: Qualicoat Class 1/2Stainless steel passivation treatment: ASTM A967 |
| Standard Thickness | 1.0mm (≈18 GA), 1.2mm (≈16 GA), 1.5mm, 2.0mm (≈14 GA), 2.5mm, 3.0mm (≈11 GA), 4.0mm (≈8 GA) and above.The thickness can be customized according to specific requirements. |
| Common Length (L1×L2) | 20mm × 20mm to 200mm × 200mmAlso available in imperial sizes: 1 "× 1" to 8 "× 8". Customisable size |
| Cylinder Specifications | Hole type: standard round hole, long strip hole.Common aperture: M4, M5, M6, M8British size: #8, 1/4 ", 5/16" reserved holePore spacing: can be customized according to requirements |
1. Load-bearing requirements: Select standard or thickened/strengthened Angle brackets according to the estimated static and dynamic loads.
2. Environmental requirements: it is recommended to use hot-dip galvanized steel or stainless steel in humid or outdoor environment; electric galvanized steel can be used in dry indoor environment.
3. Aesthetic requirements: You can choose more beautiful black coating products.
4. Space requirements: Select the appropriate arm length and Angle according to the size of the space where it is installed.

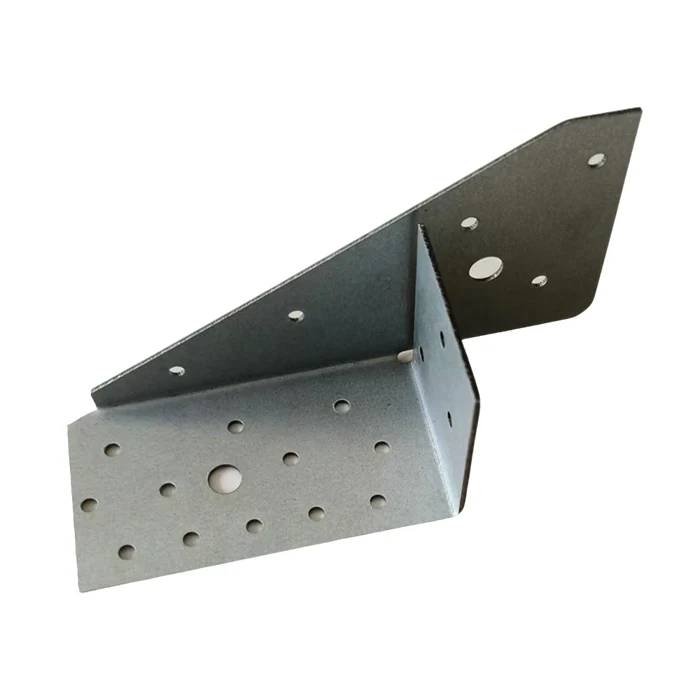

Triple grips are used to connect two perpendicular pieces of wood. Compared to ordinary corner brackets, triple grips can hold the wood together more securely through three fixing surfaces.

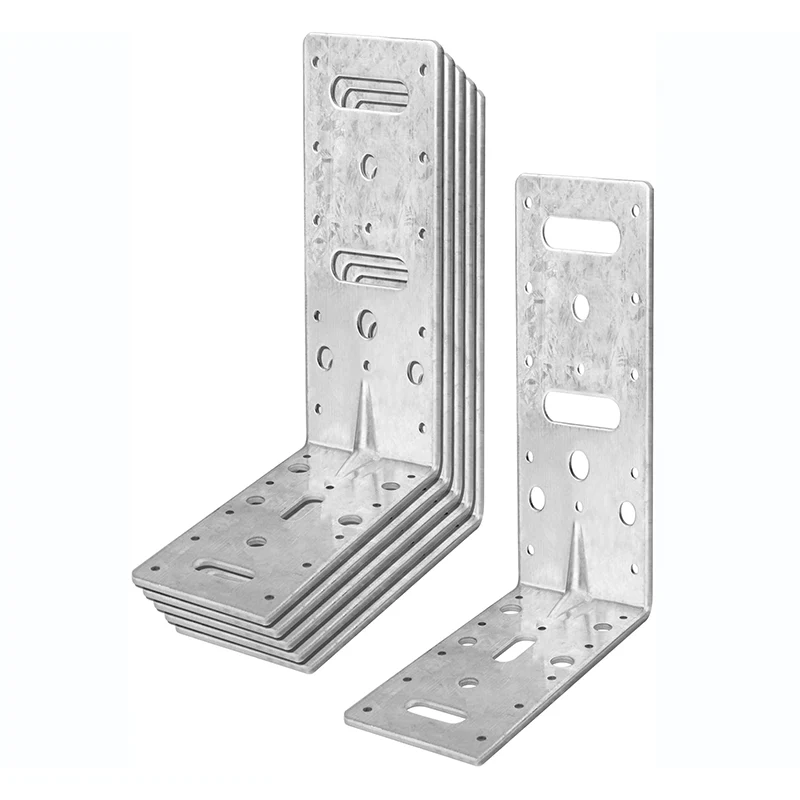

Angle brackets are commonly used to join two perpendicular pieces of timber or to connect timber to a concrete slab. Standard and heavy-duty models are available to suit different applications.

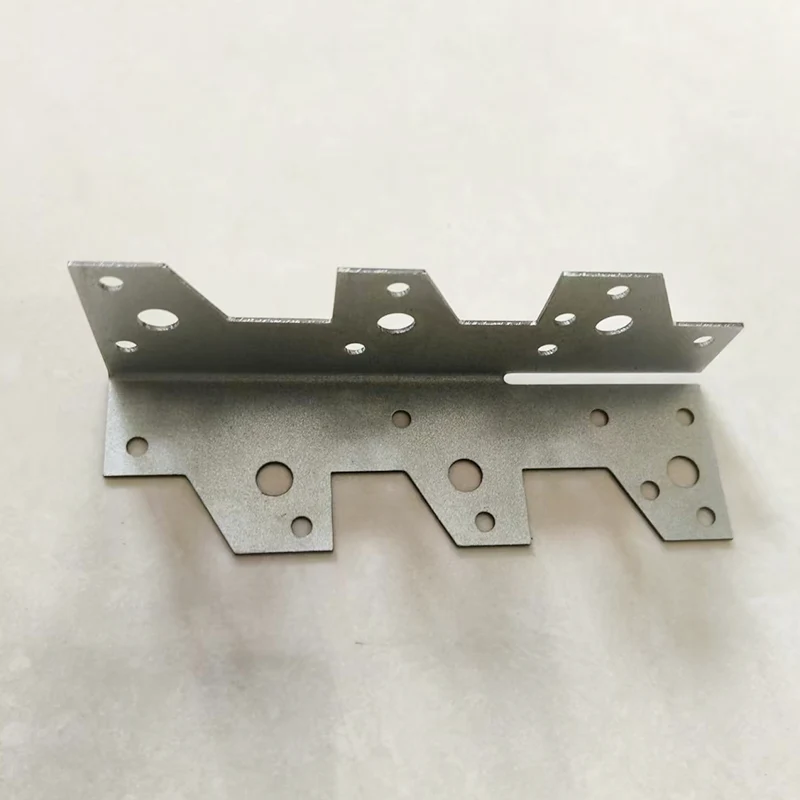

S-SEN Metal Perforated Angle Brace is a practical wood connector solution from China manufacturer / supplier, designed for right-angle structural reinforcement in timber construction. This product focuses on stable load distribution and flexible installation, suitable for builders, contractors, and wholesalers looking for reliable wood connection hardware.

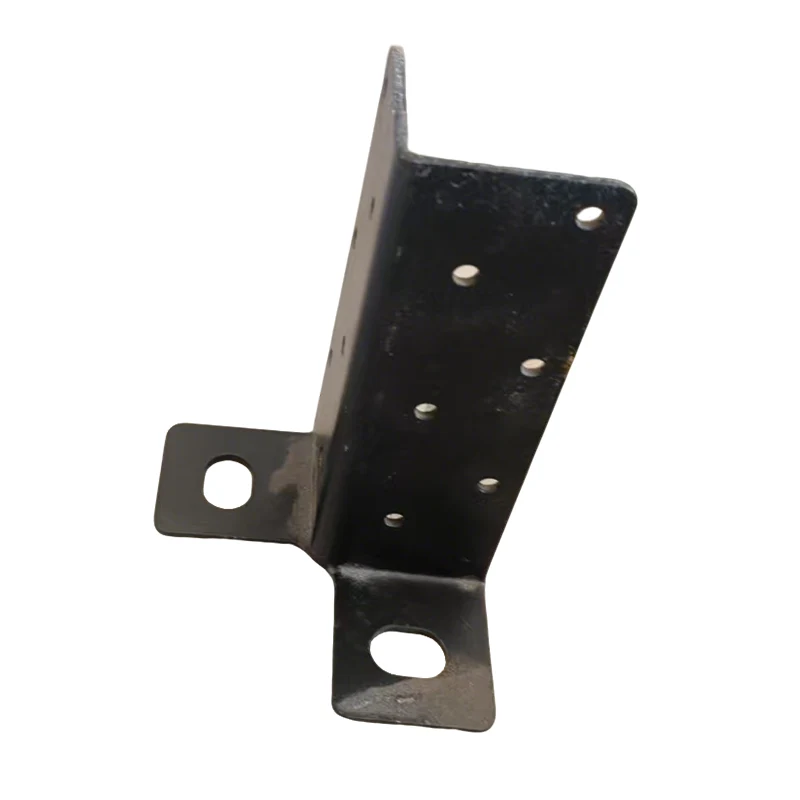

In the field of building and timber connections, an excellent connection is the key to ensuring structural stability.Our S-Sen Corner Brace Of Timber Connector, with its top-notch material selection, innovative structural design and extensive product selection, has become the trusted choice of many users.
