S-SEN Joist Hanger is an important connector used in wooden structure buildings, steel structure platforms, pipeline supports and other scenarios to provide stable support for the structure.
1. load-carrying properties
Strengthening or rolling edge treatment is adopted to reduce the risk of deformation under heavy load.
High strength steel is used as the base material to ensure its bearing capacity.
2. Corrosion resistance
Provide surface treatment such as electrogalvanized and hot galvanized to effectively resist corrosion and prolong the service life of Beam Bracket.
3. Full product range
Multiple types: standard Beam Bracket, heavy Beam Bracket and other products are provided to adapt to different scenarios.
Various specifications: can be customized according to beam height and beam thickness to meet different needs
| Category of Parameters | Define |
| Main Material | Carbon steel: ASTM A36/SAE 1008/S235JR (National standard Q235)Stainless steel: ASTM A240 Grade 304/316 |
| Surface Preparation | Electro-galvanized: ISO 4042 (5-8 microns)Hot-dip galvanizing: ASTM A123/ ISO 1461 (45-85 μm) |
| Common Thickness | 2.0mm (≈ 14 GA), 2.5mm, 3.0mm (≈ 11 GA), 4.0mm (≈ 8 GA), 5.0mm, 6.0mm (can be selected according to the load-bearing requirements) |
1. Assess the static and dynamic load requirements and select the appropriate load-bearing Joist Hanger or customize a dedicated Joist Hanger.
2. Environmental factors, indoor dry environment can be selected for electro-galvanized materials; humid or outdoor environment is recommended to use hot-dip galvanized steel or stainless steel.

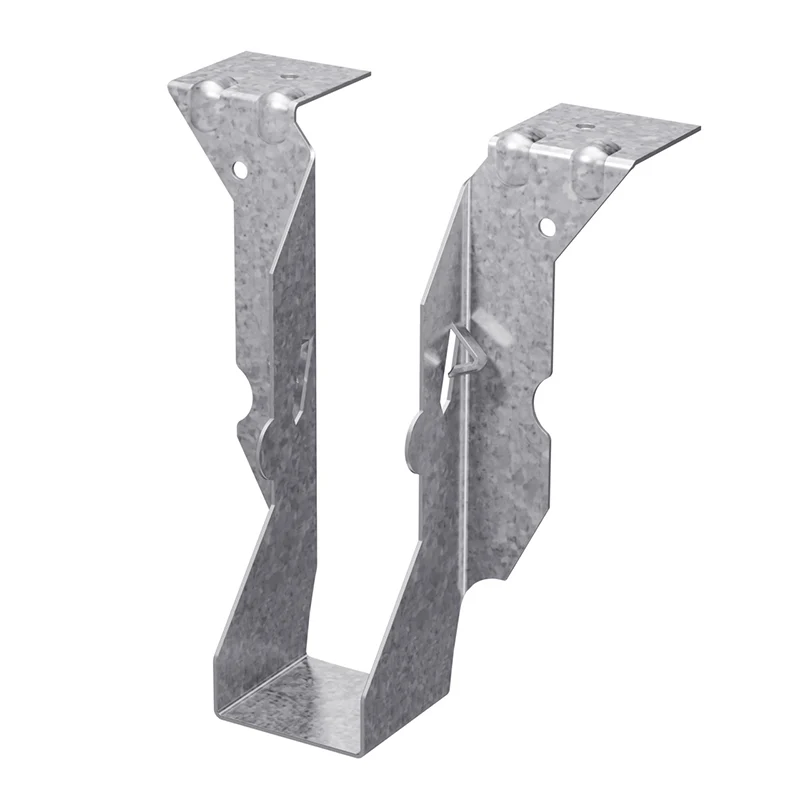

Joist Hangers are available in two types: a lightweight version for supporting timber trusses and a heavy-duty version for supporting steel structures. The appropriate version can be selected based on the application scenario.
Joist Hangers are available in two types: a lightweight version for supporting timber trusses and a heavy-duty version for supporting steel structures. The appropriate version can be selected based on the application scenario.

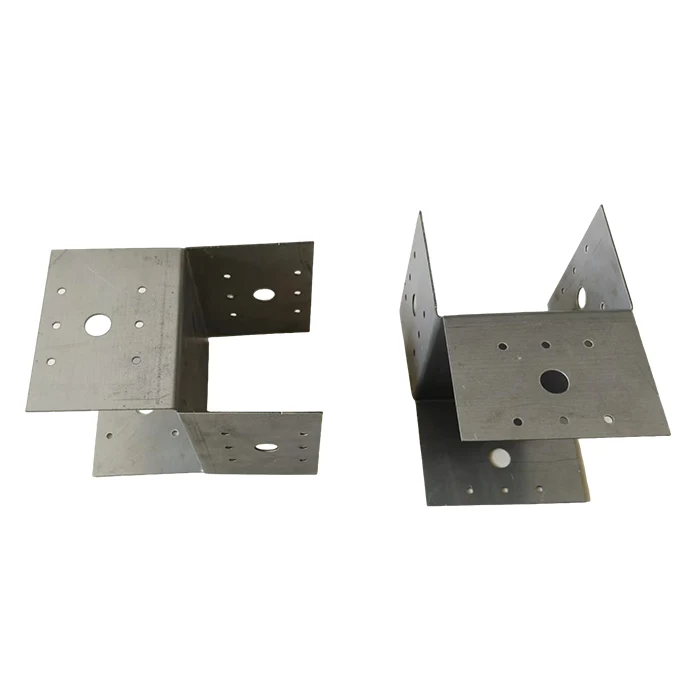

Post caps connect two timber frame posts, one vertically and one horizontally. Available in various sizes and custom sizes are also available.
Joist Hangers are available in two types: a lightweight version for supporting timber trusses and a heavy-duty version for supporting steel structures. The appropriate version can be selected based on the application scenario.
Joist Hangers are available in two types: a lightweight version for supporting timber trusses and a heavy-duty version for supporting steel structures. The appropriate version can be selected based on the application scenario.

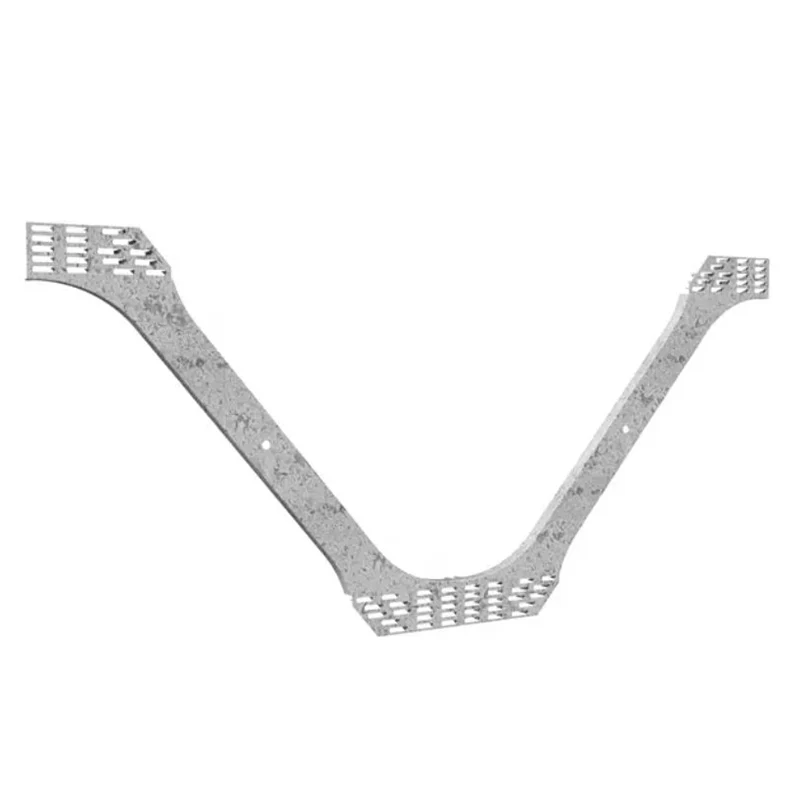

Timber Connector Beam Truss Web Joist is made of SGH340 steel as the base material. Its main feature is to disperse stress through its U-shaped or L-shaped structure to improve the bearing capacity of floor slabs and wooden floors.
