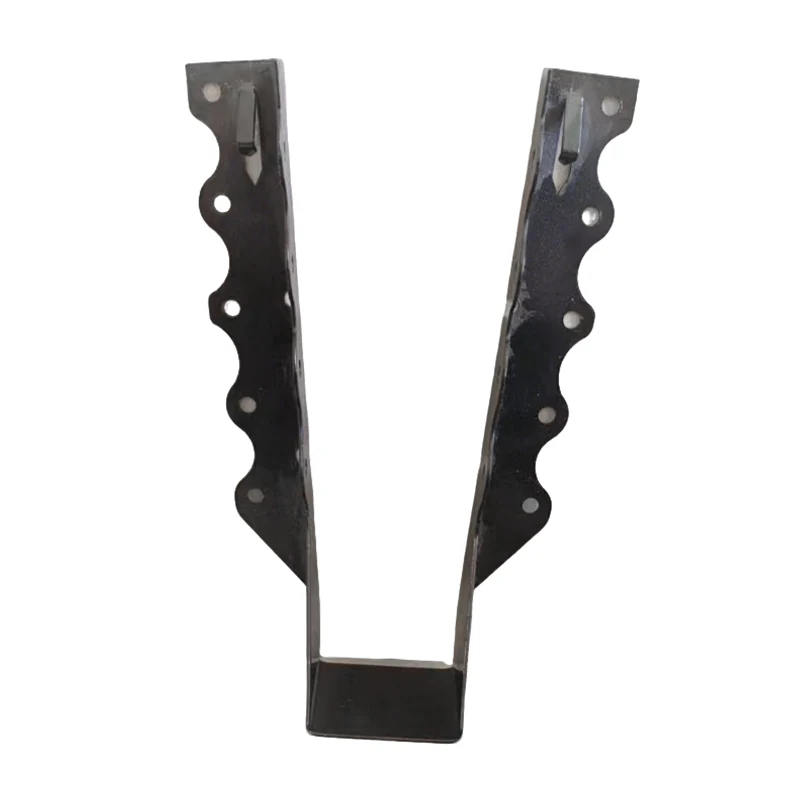

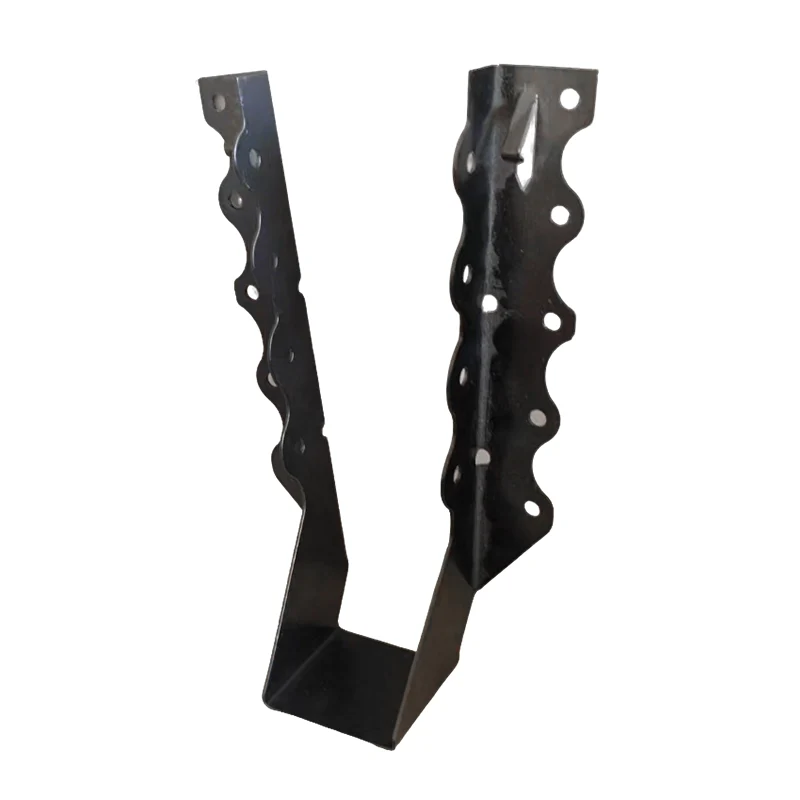

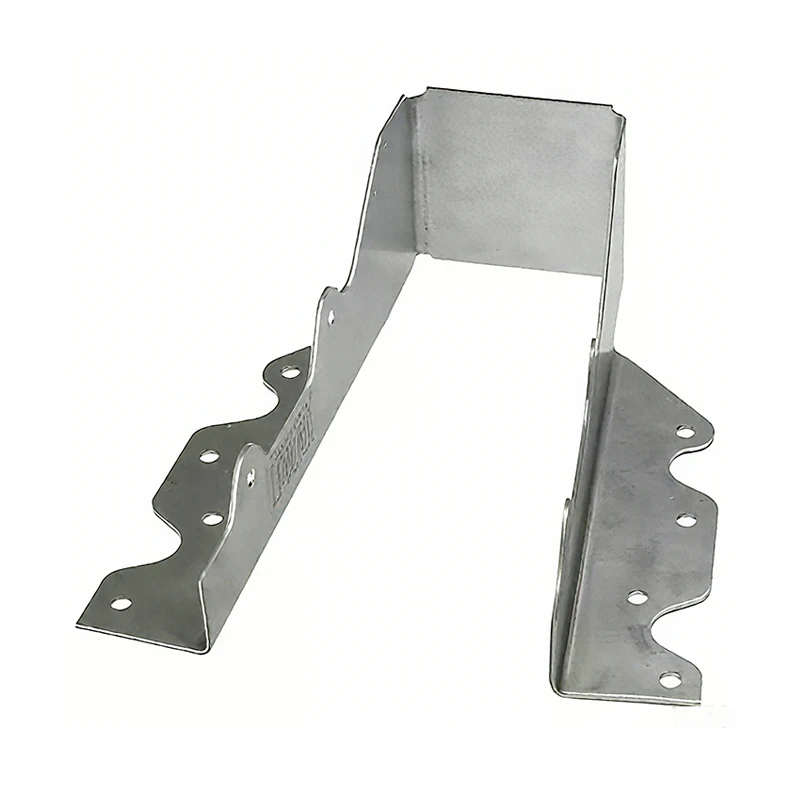

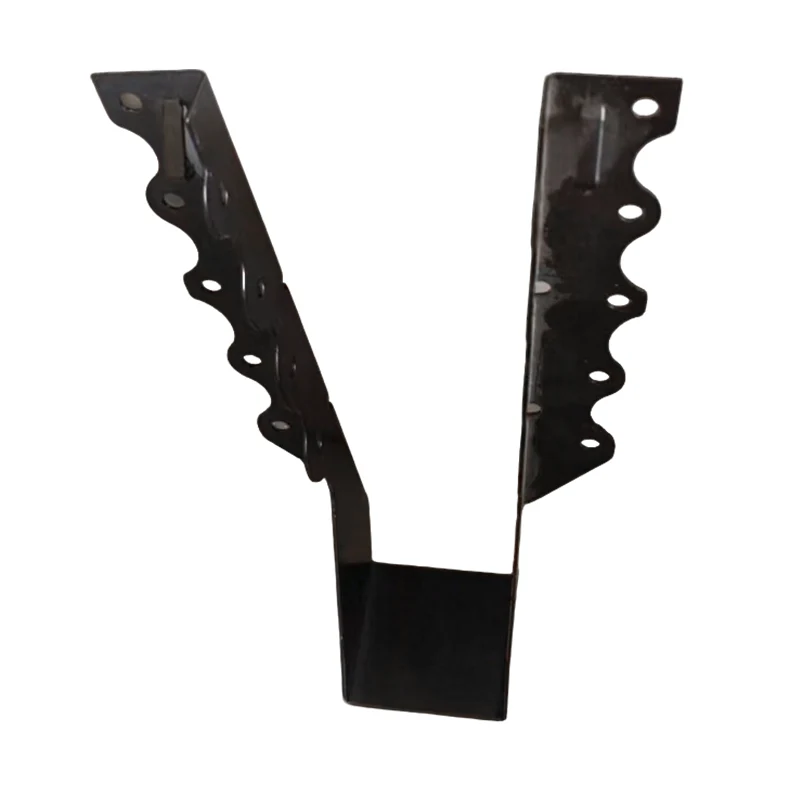

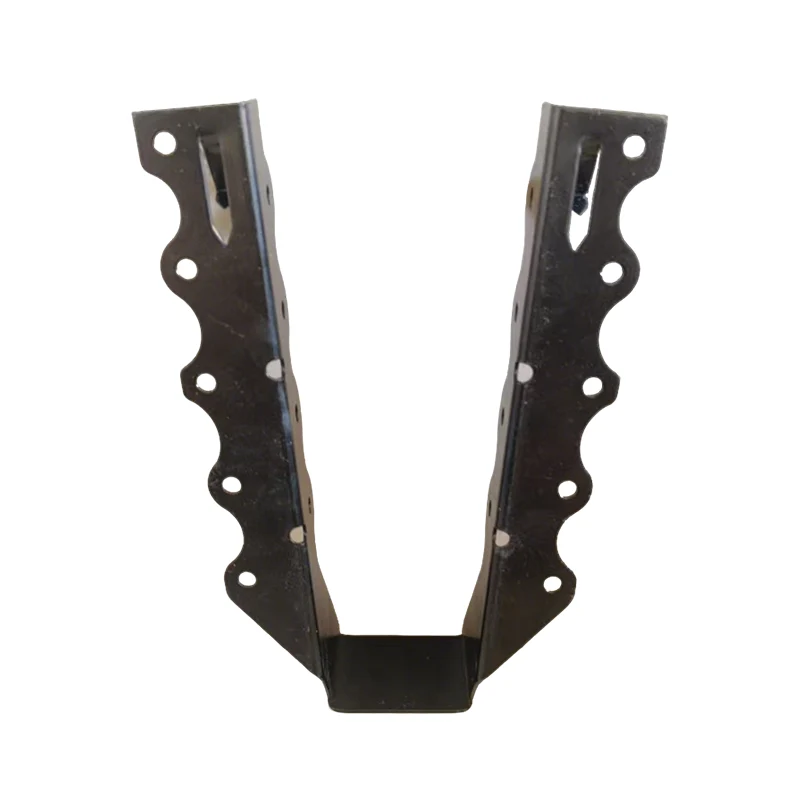

Joist Hangers are available in two types: a lightweight version for supporting timber trusses and a heavy-duty version for supporting steel structures. The appropriate version can be selected based on the application scenario.
Material:
Carbon Steel SS304 SS316Surface Treatment:
Hot Galvanized Coated PaintingPackage:
Carton Or Custom PackageJoist Hanger Product Details
1.Material: Q235 Carbon Steel + Z275g，SS304，SS316
2.Surface Treatment： Hot-Dip Galvanized
3.Size:
120mm*45mm*1mm
85mm*55mm*1mm
40mm*70mm*1mm
135mm*150mm*1.5mm
4.Application scenarios：During the construction of the house, supporting beams are used. After the wooden house is built, the Joist Hanger can also be installed on the existing wooden beams to achieve a reinforcement effect.
5.Installation Instructions：Insert the appropriately sized beam into the truss that needs support, and drill nails or screws into the truss to secure it. Then raise it to the frame and drill nails or screws into the frame joints. Each Joist Hanger has multiple pre-drilled holes for use as needed.
