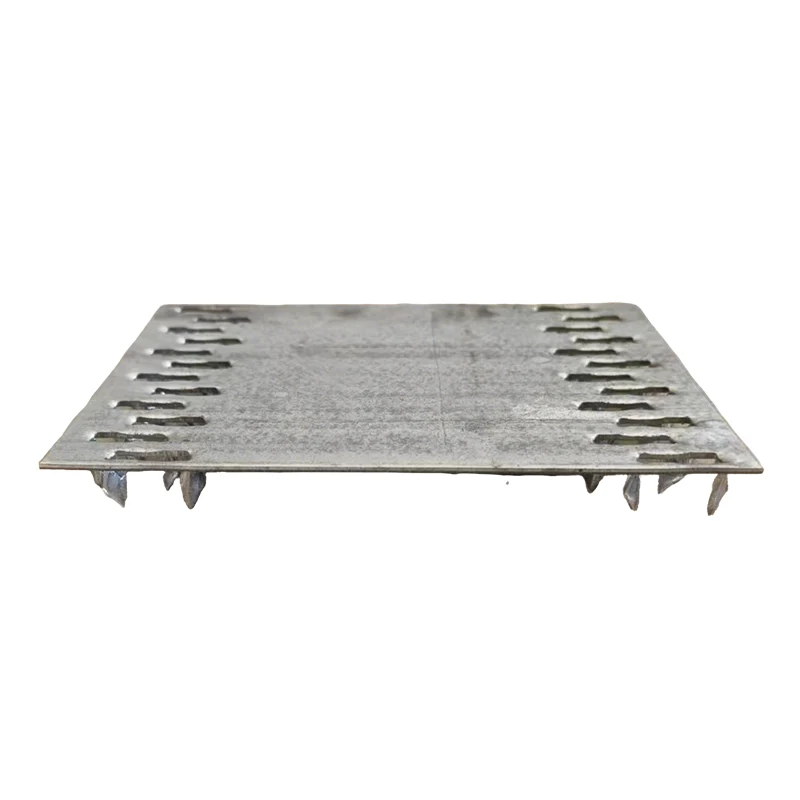

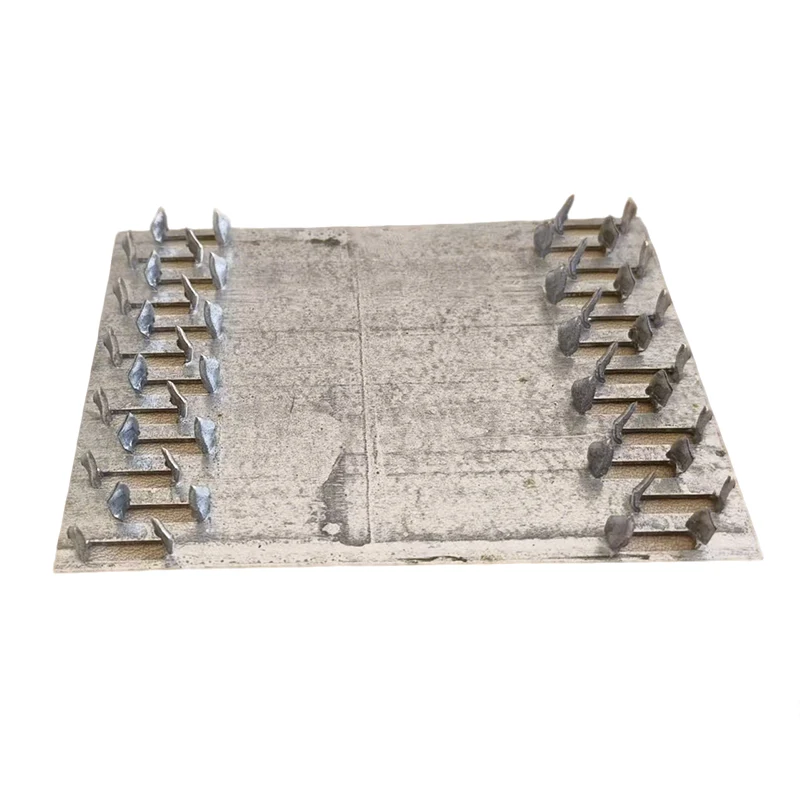

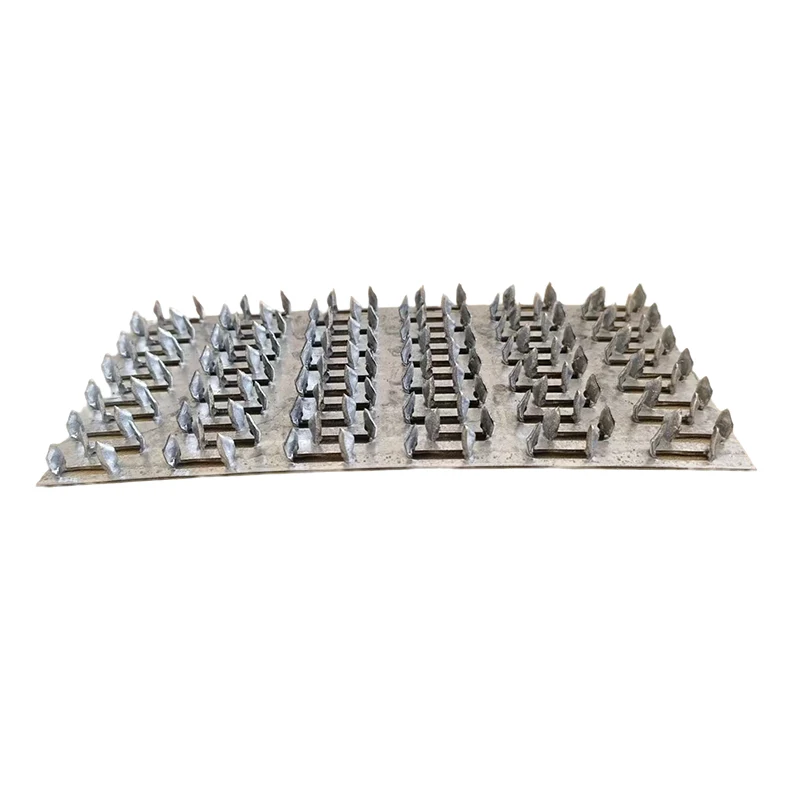

Timber Nail Board Connector is a relatively efficient and simple-to-use wood connector, made by stamping high-strength steel plates. The surface is covered with nail teeth and is used to connect the key connection points of wooden structures.
Brand ：S-SEN
The S-SEN Timber Nail Board Connector is an engineered fastening solution manufactured from high-strength steel plates. Designed for the rapid assembly of wooden structures, these connectors utilize a dense array of integrated nail teeth to create a rigid, permanent bond between timber components. By distributing mechanical stress across a wide surface area, they are essential for pre-fabricated truss manufacturing and on-site framing reinforcement.
|
brand |
S-SEN |
|
Application scenarios |
Wood structure construction |
|
Material |
HDG340+Z275,Stainless steelis available as well.
|
|
Thickness |
1.0mm - 1.5mm |
|
Size（mm） |
75*50、100*50、 100*100,150*100 and other sizes.Customized sizes are available |
|
surface preparation |
Galvanized |
|
country of origin |
HeBei,China |
|
Warranty services |
1 year |
Precision Stress Dispersion
Each tooth on the S-SEN Timber Nail Board Connector is engineered with a specific angle and height. When pressed into the timber, the teeth create a deep interlocking engagement that generates multidirectional tensile force. This prevents splitting while maximizing the load-bearing capacity of the joint.
Structural "Integration" Effect
Our nail plates allow multiple wooden members to function as a single, high-stiffness unit. This "whole-structure" connectivity ensures that localized stress is dispersed throughout the entire frame, significantly improving the stability of roof and wall systems.
Certified Corrosion Protection
The use of HDG340 steel combined with a Z275 galvanized coating ensures that the Timber Nail Board Connector remains structurally sound in humid environments. For specialized projects near coastal areas, we offer 304 and 316 stainless steel variants to mitigate salt-air oxidation.
Located in the "Hardware Capital of China," S-SEN utilizes high-speed precision stamping machines and CNC technology. Our ISO 9001-certified management system ensures that every batch of Timber Nail Board Connectors maintains consistent tooth geometry and material thickness.
With a strong presence in the North American and Australian markets, S-SEN understands international building hardware standards. We provide:
Logistics Tracking: Real-time monitoring from our Hebei factory to your port.
Mass Supply: Stable production scales to prevent project delays due to material shortages.
Technical Support: Installation guidance and online consulting for structural applications.
Will the teeth bend or fail during high-pressure installation?
S-SEN uses high-tensile HDG340 steel. Our plates are designed to withstand the force of industrial hydraulic presses without tooth deformation, ensuring a flush and secure fit with the wood grain.
How do S-SEN plates compare to local suppliers?
While many local suppliers offer standard galvanization, S-SEN guarantees the Z275 coating weight, which provides a thicker protective barrier. This reduces the risk of structural failure over a 50-year building lifecycle compared to lower-grade alternatives.
Q: Are these plates suitable for manual hammering?
A: While small plates can be hammered, we recommend using a hydraulic press or specialized roller for the S-SEN Timber Nail Board Connector to ensure all teeth penetrate simultaneously and evenly for maximum grip.
Q: Do you provide a 1.5mm thickness for heavy-duty commercial trusses?
A: Yes, we stock 1.0mm to 1.5mm thicknesses. We can also customize the plate dimensions to meet specific engineering load requirements.
Q: Can I request a sample for tension testing?
A: Certainly. We encourage technical evaluation. Please contact our sales team to arrange for samples of our galvanized or stainless steel nail plates.
