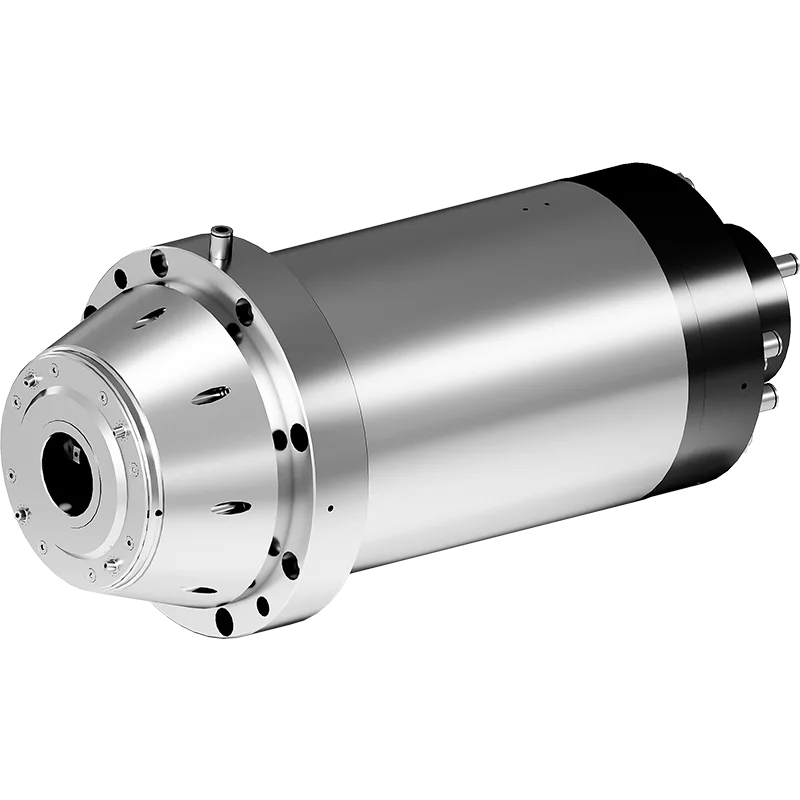

Article Summary: A CNC Spindle Drawbar is a critical internal component that secures tool holders inside CNC spindle systems and supports reliable tool retention, transmission, and automatic tool changes. Manufactured from high-strength alloy steel, the CNC Spindle Drawbar supplied by S-SEN is designed for BT, CAT, and HSK spindle configurations, with precision grades, surface treatments, and OEM customization options available for demanding machining applications.
In modern CNC machining, spindle performance directly influences cutting accuracy, productivity, tool life, and machining stability. While the spindle housing and motor receive much of the attention, the drawbar is equally important because it provides the mechanical connection that retains the tool holder during machining.
A CNC Spindle Drawbar is installed inside the spindle assembly and works with the spindle's gripping mechanism to clamp and release the tool holder. During cutting, it helps maintain the required retention force so the tool remains securely positioned even when the machine operates at high speed.
For manufacturers purchasing replacement or OEM components, selecting a properly engineered drawbar can help reduce tool-holder movement, improve repeatability, and support reliable automatic tool changes. S-SEN develops precision CNC mechanical components for industrial applications and supplies drawbars for common BT, CAT, and HSK spindle systems.
The working principle of a drawbar is relatively straightforward, but its dimensional accuracy is critical. The component operates as part of the spindle's internal clamping mechanism.
Because these operations are repeated throughout a machine's service life, the drawbar must withstand repeated mechanical loading while maintaining dimensional consistency.
A suitable drawbar should be selected according to the spindle architecture, operating speed, tool-holder interface, machining load, and maintenance requirements. Important characteristics include:
Purchasing teams should not evaluate a CNC Spindle Drawbar based solely on external dimensions. The complete specification must correspond to the spindle and tool-holder system. According to the product information provided by S-SEN Metal, the main specifications include the following:
| Specification | Available Information |
|---|---|
| Product Name | CNC Spindle Drawbar |
| Material | High-strength alloy steel |
| Compatible Systems | BT / CAT / HSK |
| Accuracy Grade | P5 / P4 / P2 |
| Surface Treatment | Hard coating / chrome plating, optional |
| Operating Speed | Up to tens of thousands RPM, depending on spindle system |
| Main Applications | CNC machining centers and milling machines |
| Supply Options | OEM, customized, and wholesale |
Actual dimensions and performance requirements should always be confirmed against the target spindle model and technical drawings before purchasing. This is particularly important when replacing an existing component, because apparently similar drawbars may differ in thread dimensions, length, retention mechanism, or interface geometry.
Material selection has a direct influence on the durability and dimensional stability of a drawbar. S-SEN's CNC Spindle Drawbar uses high-strength alloy steel selected for mechanical stability under demanding operating conditions.
The manufacturing process can involve several precision operations, including:
Heat treatment is especially important for components exposed to repeated clamping and release cycles. Precision grinding and inspection then help bring critical dimensions within the required tolerances.
Depending on the working environment, surface treatments such as hard coating or chrome plating may also be specified. Buyers should discuss the actual operating conditions with the manufacturer rather than selecting a surface finish based only on appearance.
Compatibility is one of the most important considerations when sourcing a CNC Spindle Drawbar. Common tool-holder standards include BT, CAT, and HSK, but compatibility involves more than simply choosing one of these names.
Before ordering, buyers should confirm:
Providing technical drawings or an existing drawbar sample can make the identification process more reliable. For OEM projects, a manufacturer capable of customized CNC machining can also adapt the component to specified dimensions and performance requirements.
The CNC Spindle Drawbar is primarily used in CNC machining equipment where secure and repeatable tool retention is required. Typical applications include:
| Application | Role of the Drawbar |
|---|---|
| CNC Milling Machines | Supports reliable tool-holder retention during cutting |
| CNC Machining Centers | Enables stable clamping and automatic tool changes |
| Metal Processing | Supports consistent tool positioning under machining loads |
| Mold Manufacturing | Helps maintain repeatable tool positioning for precision machining |
| Automated Production Lines | Supports repeated clamping and tool-change operations |
For high-volume production, drawbar quality can become especially important because frequent tool changes place repeated mechanical demands on the spindle clamping assembly.
For industrial buyers, supplier capability is as important as the component itself. A qualified China manufacturer should be able to demonstrate appropriate machining capabilities, inspection procedures, material control, and customization support.
S-SEN Metal, operated by Cangzhou Shengsen Hardware Products Co., Ltd., was established in 2017 and manufactures CNC machining parts and other precision hardware components. The company states that it uses CNC machine tools, laser cutting equipment, and precision testing systems, with ISO 9001 certification covering multiple hardware product categories.
When comparing suppliers, consider these factors:
S-SEN provides OEM and bulk supply options for CNC Spindle Drawbar applications, with customization available for dimensions, accuracy grades, and surface treatments.
A CNC Spindle Drawbar is an internal spindle component that helps clamp, retain, and release a tool holder. It is an essential part of the spindle's tool-retention mechanism.
The product information from S-SEN lists compatibility with common BT, CAT, and HSK tool-holder systems. Exact compatibility should be confirmed according to the spindle model and technical specifications.
Yes. S-SEN supports customization for dimensions, accuracy grades, and surface treatments, making OEM production possible for specific spindle requirements.
High-strength alloy steel is suitable for drawbars because the component needs to withstand repeated mechanical loading and maintain dimensional stability during spindle operation.
S-SEN lists P5, P4, and P2 accuracy grades. The appropriate grade depends on the spindle design, machining requirements, and required precision.
Yes. S-SEN provides factory-direct OEM and bulk supply options for distributors, machinery manufacturers, CNC equipment suppliers, and other industrial buyers.
A reliable CNC Spindle Drawbar is essential for stable tool retention, repeatable tool positioning, and dependable automatic tool changes in modern CNC machining systems. Choosing the correct material, dimensional accuracy, spindle interface, surface treatment, and manufacturing capability can significantly improve component reliability and reduce compatibility problems. For OEM projects, replacement requirements, or bulk purchasing, S-SEN combines CNC machining capability with customization and factory-direct supply support. If you are looking for a suitable CNC Spindle Drawbar based on your spindle model, drawings, or application requirements, contact us to discuss specifications, customization options, and a professional quotation.
