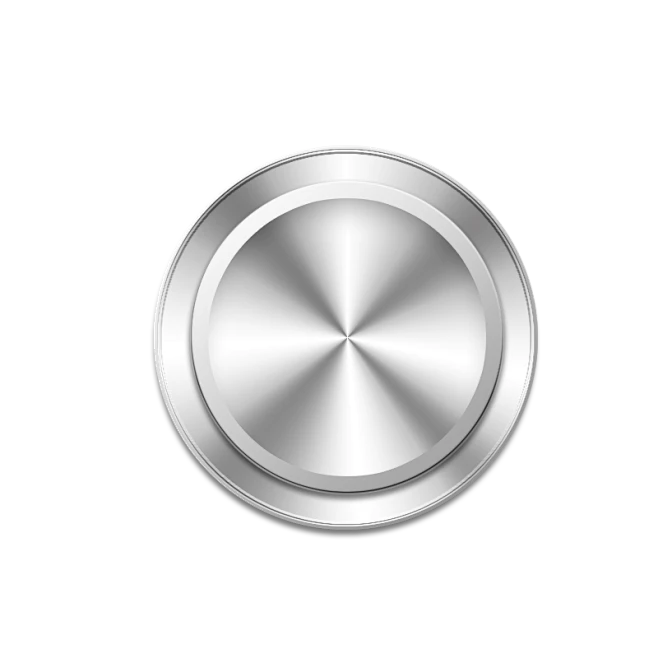

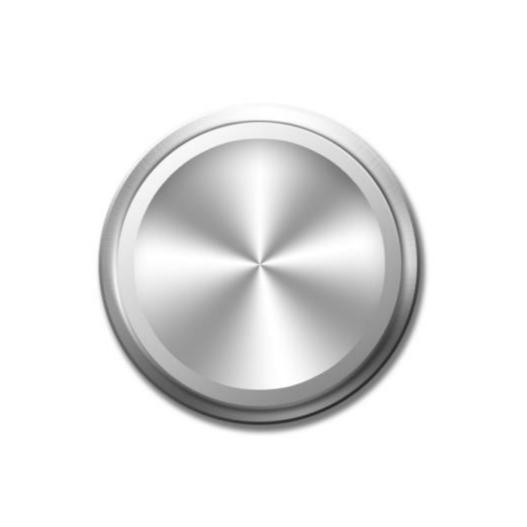

The S-SEN stainless steel push button guard ring anti-corrosion is a component used to protect button switches, typically installed on the outside of the switch to provide additional protection. This type of guard enhances the durability of the button switch, especially in applications that require frequent operation or are exposed to harsh environmental conditions.
Anti-Corrosion | IP65 Rated | 1,000,000+ Mechanical Cycles
The S-SEN stainless steel push button guard ring solves a common problem: switch failure caused by dust, moisture, and frequent operation.
If you're specifying components for outdoor electrical cabinets, marine equipment, or industrial control panels, you've likely experienced:Buttons jamming after months of dust exposureCorrosion around the mounting hole from salt spray or chemicalsElectrical contacts failing due to mechanical fatigueThis guard ring addresses each of these failure points at the design level — not by adding complexity, but by improving the contact bridge, push rod reinforcement, and sealing strategy.
Why this matters to you: Fewer field failures → lower warranty claims → reduced total cost of ownership.
| Specification | Value |
|---|---|
| Product Type | Stainless Steel Push Button Guard Ring (Anti-corrosion) |
| Material | Stainless Steel (housing + ring), NBR O-ring |
| Protection Rating | IP65 (dust-tight, protected against water jets) |
| Operating Temperature | -25°C to +55°C |
| Mechanical Life | ≥ 1,000,000 cycles (no push rod deformation) |
| Electrical Disconnection | Pop-up mechanism + arc extinction |
| Contact Structure | Integrated contact bridge |
| Compliance | RoHS, ISO 9001 |
| Mounting Type | Panel mount, standard round cutout |
1. Integrated Contact Bridge → Lower Electrical Failure RatesThe rotating head and base use a one-piece contact bridge design — not a split structure. This eliminates a common failure point: misalignment between moving parts. The result is consistent electrical disconnection even after hundreds of thousands of cycles.
For your application: If you're building control panels that need to function reliably for 5+ years without maintenance, this reduces the risk of intermittent contact failure.2. Widened Push Rod → No Denting After Millions of PressesThe push rod section has been intentionally widened to distribute mechanical stress. In conventional switches, the push rod dents over time, leading to incomplete actuation or complete failure. Our testing confirms: no visible deformation after 1 million cycles.
For your application: High-frequency use environments (public transport, industrial machinery, vending machines) — this is where standard switches die early, and where this guard ring extends service life.3. O-Ring + Stainless Steel → Dustproof, Waterproof, Corrosion-ProofThe built-in O-ring seal prevents ingress from the front. The stainless steel housing resists oxidation, chemical agents, and saline atmospheres.
For your application: Outdoor enclosures, marine environments, petrochemical facilities, or any location where humidity, salt spray, or washdowns are routine.
| Environment | Why S-SEN Fits |
|---|---|
| Outdoor electrical cabinets (roadsides, telecom towers) | IP65 + UV-resistant sealing (O-ring won't degrade quickly) |
| Marine equipment (docks, ships, offshore platforms) | Stainless steel resists salt spray corrosion |
| Food processing / washdown areas | Stainless steel + sealed front — easy to clean |
| Industrial machinery with high daily cycles | Widened push rod + 1M cycle rating |
| Public transport (bus doors, ticket validators) | Vibration resistance + dust sealing |
| Petrochemical / chemical plants | Corrosion resistance against chemicals (validate gasket compatibility for aggressive chemicals) |
| Parameter | Value / Description |
|---|---|
| Product Type | Stainless Steel Push Button Guard Ring (Anti-corrosion) |
| Material | Stainless Steel (Housing & Ring), NBR O-ring |
| Operating Temperature | -25°C to +55°C |
| Protection Rating | IP65 (dust-tight, protected against water jets) |
| Mechanical Life | ≥ 1,000,000 cycles (push rod without deformation) |
| Electrical Disconnection | Pop-up disconnect + fast arc extinction |
| Contact Structure | Integrated contact bridge, self-cleaning mechanism |
| Mounting Type | Panel mount / standard round push button cutout |
| Compliance | RoHS, ISO 9001 factory quality system |
How We Ensure Consistency
S-SEN operates from a 10,000+ m² facility in Cangzhou, Hebei Province (Beijing-Tianjin-Hebei industrial region). Manufacturing capabilities include:
Precision stamping presses
CNC machining centers
Laser cutting equipment
Wire-cutting machinery
Quality checks performed on every batch:
Dimensional inspection (housing, push rod, O-ring groove)
Sealing integrity test (IP65 verification)
Mechanical cycle sampling (every batch, not just design validation)
Certifications: ISO 9001 (production quality system), RoHS compliance.
Installation (3 steps)
Maintenance Recommendation
| Environment | Inspection Frequency |
|---|---|
| Standard environments | Visual inspection every 12 months |
| Harsh / dusty environments | Check push rod movement every 6 months, clean exterior with non-abrasive cloth |
Common mistake to avoid: Do not lubricate the push rod internally — the NBR O-ring is designed for dry operation. Lubricants attract dust and can degrade the seal.
Q1: Is this guard ring compatible with any push button switch, or only S-SEN switches?
A: The guard ring is designed for standard round push button cutouts. However, internal push rod dimensions vary between manufacturers. We recommend testing a sample with your specific switch module before full production.
Q2: Can this be used outdoors in direct sunlight year-round?
A: Yes. The stainless steel housing does not degrade under UV exposure. The NBR O-ring has good UV resistance for outdoor use. For extreme desert environments with sustained 50°C+ temperatures, contact us for material alternatives.
Q3: Do you offer custom engraving or branding on the guard ring?
A: Yes. Custom laser marking is available for volume orders. Minimum quantity applies — contact sales for details.
Q4: What is the lead time for samples vs. production quantities?
A: Samples: 5-7 working days (if in stock). Production: 15-20 working days, depending on quantity.
Q5: How do I know if this guard ring will fit my panel?
A: Contact us with your panel thickness and cutout diameter. We can confirm fitment within 24 hours.
Q6: What is the IP rating, and can it withstand direct water spray?
A: IP65 means dust-tight and protected against water jets from any direction. It is not rated for full submersion.
Q7: Do you provide a datasheet or dimensional drawing?
A: Yes. Request the datasheet via the inquiry form below.
