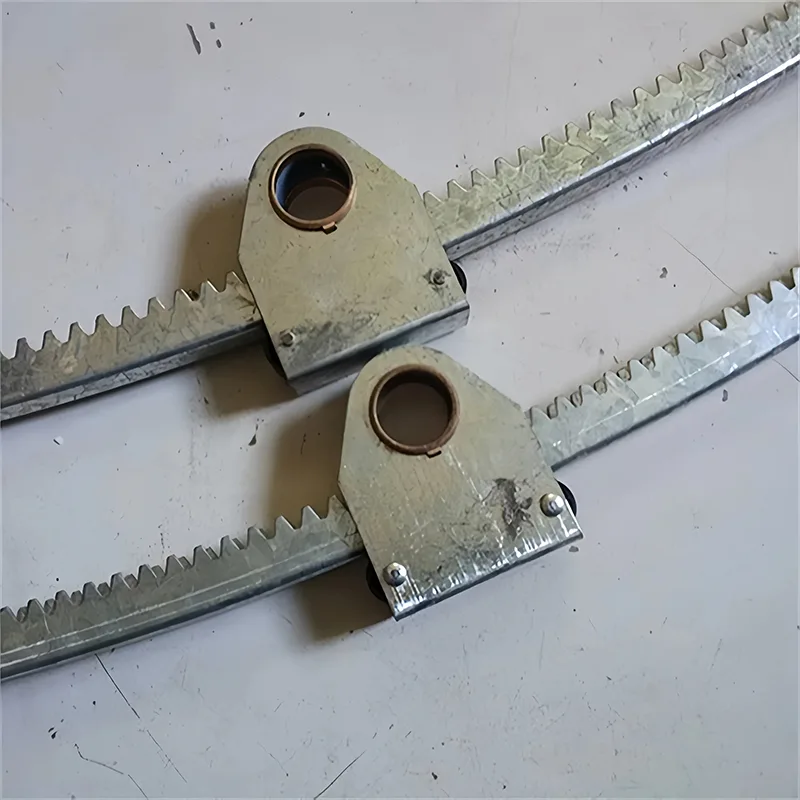

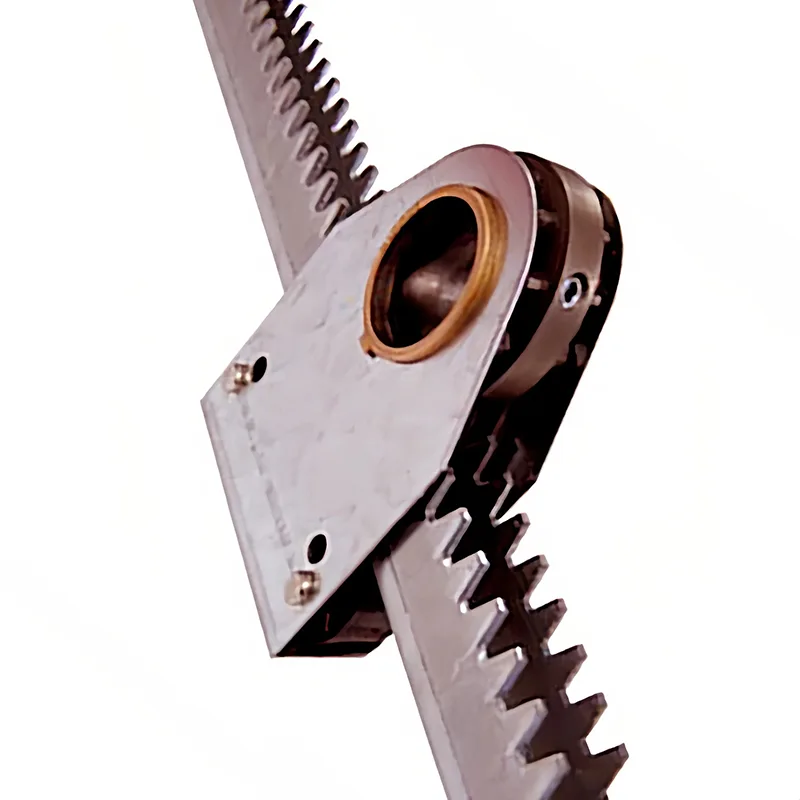

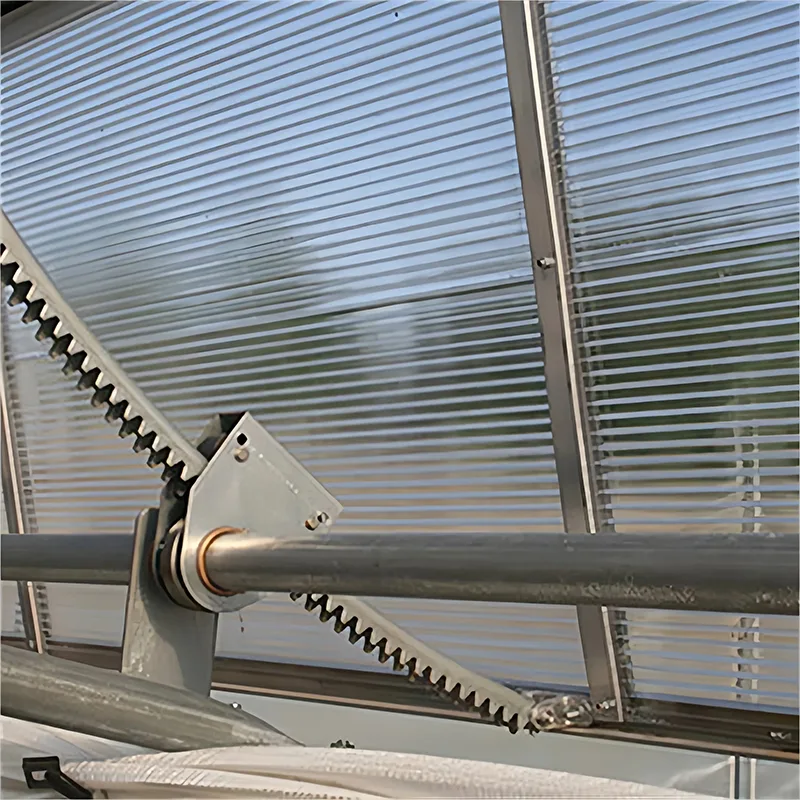

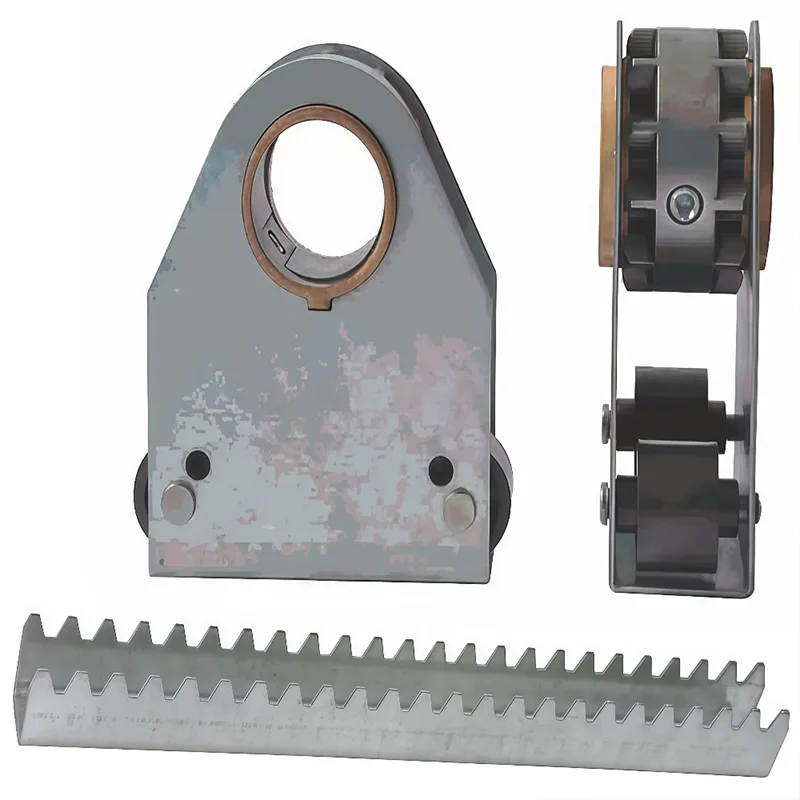

Greenhouse Accessories Electric Window System Gear

What Makes This Gear Different From Common Options?

Most greenhouse window gears are designed for ideal conditions. Yours aren't. You might face:

• Salt spray from coastal winds corroding standard zinc plating within months
• High daily cycles (seedling greenhouses open/close windows 5-10x per day) causing premature tooth wear
• Dust + humidity from evaporative cooling systems → gear lubricant attracts debris → jamming

The S-SEN gear addresses each scenario at the engineering level:

1. Two Material Tracks – You Choose Based on Your Payback Period

2. Precision That Prevents Uneven Wear

We utilize a combination of CNC punching and laser cutting—rather than relying on worn-out, aging dies—to manufacture our components. This ensures that the tooth geometry remains consistent across every production batch. Why is this critical? When gear teeth mesh correctly, the motor current remains stable, and the window operates smoothly. Irregular tooth profiles, conversely, lead to increased motor load, elevated current levels, and ultimately, premature component failure. Choosing a precision-engineered gear for your greenhouse's electric window system is not merely about guaranteeing transmission efficiency; it is about protecting your motor and minimizing long-term maintenance costs.

3. Surface Protection Matched to Exposure Hours

Not all galvanizing is the same. We offer:

• Electro-galvanizing (standard): 8-12µm zinc layer – suitable for low-humidity, protected mounting positions
• Hot-dip galvanizing (our recommendation for outdoor): 50-80µm zinc layer – survives 1,000+ hours salt spray testing (ASTM B117). This is what we specify for coastal or rooftop greenhouse projects.

Three Real-World Use Cases (With Numbers)

Case 1 – Coastal Tomato Greenhouse (Shandong, China)

• Problem: Standard electric window gears corroded and seized every 8-10 months. Replacement labor cost: $40 per unit.
• Solution: S-SEN stainless steel 316 gears installed on 120 roof windows.
• Result: After 22 months, zero corrosion-related failures. Total replacement labor saved: ~$4,800.

Case 2 – High-Frequency Seedling Greenhouse (Netherlands)

• Problem: Windows opened/closed 8x daily for climate control. Gear teeth wore down after 14 months, causing motor burnout.
• Solution: S-SEN low carbon steel with hot-dip galvanizing + widened tooth profile.
• Result: No visible tooth deformation after 500,000 cycles (24+ months of operation).

Case 3 – Dusty Desert Greenhouse (UAE)

• Problem: Fine sand mixed with gear lubricant → abrasive wear → failure every 6 months.
• Solution: Sealed gear housing + powder-coated surface (no exposed lubricant paths).
• Result: Maintenance intervals extended to 18 months.

Technical Specifications (Engineer-Friendly)

Which Specification Is Right For You? – A Quick Guide

1. If your greenhouse is within 5km of the ocean: Choose stainless steel 316. Do not rely on coating only – salt will find any pinhole.
2. If you operate in high humidity but inland: Choose low carbon steel + hot-dip galvanizing. Best cost-to-life ratio.
3. If dust/sand is your primary concern: Choose low carbon steel + powder coating. Matte finish resists scratching.
4. If you need to match an existing system's dimensions: Send us a drawing or sample. We can replicate length, width, and hole pattern.

FAQ

Q: How many cycles can this gear handle before tooth wear becomes visible?
A: For hot-dip galvanized low carbon steel under normal greenhouse torque loads: 500,000 cycles ±10% before measurable wear. For stainless steel: 1,000,000+ cycles . We can provide batch sample test data upon request.

Q: Can I use this gear with a generic 24V AC window motor?
A: In most cases, yes. The tooth profile and module are designed to match common Asian and European greenhouse motor outputs. However, we strongly recommend sending us your motor's gear sample or dimension drawing for verification.

Q: Do you offer a version without any coating (bare stainless steel)?
A: Yes. Bare 304 or 316 stainless is available for projects where coating adds unnecessary cost. Contact us with your planned environment for a recommendation.

Q: What is your typical lead time for custom sizes?
A: For lengths up to 2,000mm and quantities under 500 pieces: 10-15 working days after drawing confirmation. Expedite options available.

Q: Do you provide dimensional drawings before ordering?
A: Yes. For any custom size, we provide a 2D CAD drawing (DXF or PDF) for your approval before production.

Quality Assurance – How We Avoid Common Defects

• Every batch receives tooth profile gauge inspection (no visual-only checking)
• Hot-dip galvanizing thickness tested with magnetic thickness gauge (3 points per piece, 5 pieces per batch)
• Stainless steel material verified with PMI (Positive Material Identification) tester on request
• ISO 9001 documented processes – not just "certified," but followed daily

About S-SEN Metal – Why Our 10+ Years Matter

We are not a trading company. We operate a 10,000+ m² manufacturing facility in Hebei, China, part of the Beijing-Tianjin-Hebei industrial region. Our equipment includes:

• CNC hydraulic press brakes (for consistent bending)
• Fiber laser cutters (for precise blanking)
• Automated stamping lines (for high-volume projects)

What this means for you: When you request a sample, we cut from the same material and process as your production order. No "sample-grade" versus "production-grade" surprises.

How To Order

1. Inquiry – Tell us: material preference, length/width, quantity, and environment (coastal/humid/dusty)
2. Drawing review – We send CAD drawing within 48 hours
3. Sample approval – Sample shipped in 5-7 days
4. Production – 10-20 days depending on quantity
