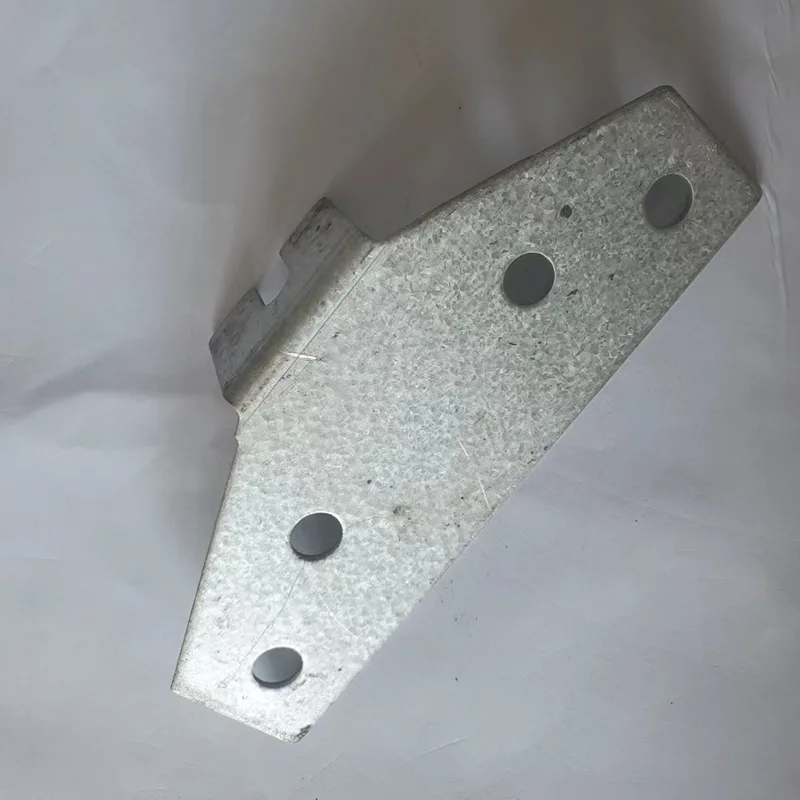

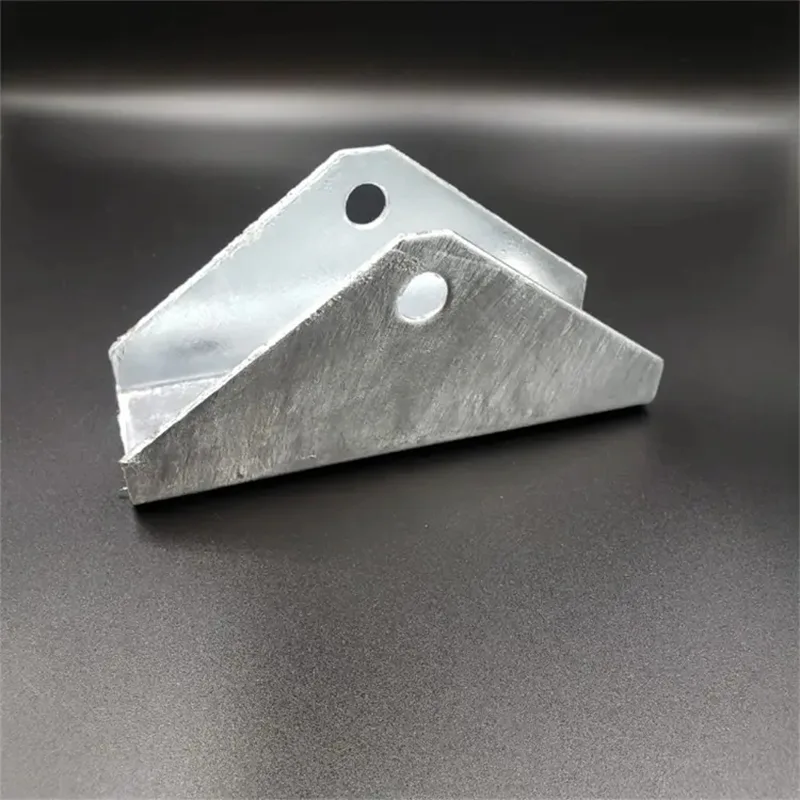

End Wall Gable Connector

Product Overview

• A metal connector used in greenhouse end wall structures
• Connects arches, columns and tie rods into a triangular framework
• Helps distribute wind load and snow load
• Supports structural stability of greenhouse gable sections

Structural Function

• Forms a triangular support structure
• Improves rigidity of greenhouse end walls
• Reduces deformation under external pressure
• Provides connection points for multiple pipes

Product Features

Triangular Structural Reinforcement

• Uses geometric triangular stability for structural reinforcement
• Connects dispersed greenhouse pipes into an integrated frame
• Helps improve resistance to wind and snow loads

Modular Assembly Design

• No welding required during installation
• Bolt-based assembly system simplifies construction
• Suitable for greenhouse installation teams without welding equipment

Pipe Size Compatibility

• Compatible with Φ38 mm greenhouse pipes
• Compatible with Φ48 mm galvanized steel pipes
• Can be adapted to aluminum alloy structural pipes

Connector Structure Options

T-Type Triangular Connector

• Three-way connection structure
• Used in main load-bearing zones
• Provides stronger tensile support for arch connections

Angle Bracket Connector

• Right-angle or adjustable metal bracket
• Pre-drilled holes for bolt installation
• Suitable for non-standard pipe layout

Slot-Type Connector

• Uses internal slots or clamping pads
• Allows tool-free assembly
• Often used for temporary greenhouse structures

Pre-Welded Triangular Connector

• Factory welded triangular frame structure
• Provides higher structural strength
• Commonly used for permanent greenhouse projects

Technical Specifications

Application Scenarios

Greenhouse Types

• Single-span agricultural greenhouses
• Multi-span commercial greenhouse complexes
• Vegetable and fruit production facilities
• Flower cultivation greenhouses

Structural Locations

• End wall triangular frame area
• Arch-to-column connection zones
• Pipe reinforcement joints

Manufacturing & Quality Control

Production Capability

• CNC machining and laser cutting equipment
• Precision stamping and metal forming technology
• Stable batch production capacity

Quality Management

• ISO 9001 certified production system
• Inspection of raw materials and finished products
• Consistent dimensional accuracy

Why Choose S-SEN Metal

• Manufacturer specializing in greenhouse structural connectors
• Experience in metal stamping and structural hardware production
• Export experience in North America and Australia markets
• Support for bulk orders and customized connector designs

Packaging & Shipment

• Standard export carton packaging
• Pallet packing available for bulk orders
• Container shipment for large greenhouse projects
• Logistics tracking support during transportation

Technical Support & Services

• Installation instruction documentation
• Online technical consultation
• Structural application guidance
• After-sales response support

FAQ

1. What is the main purpose of an End Wall Gable Connector?

The End Wall Gable Connector is used to connect the triangular framework at the greenhouse end wall, improving the stability of arch pipes, columns and tie rods.

2. Can this connector be used for different pipe sizes?

Yes. The S-SEN Metal End Wall Gable Connector supports common greenhouse pipe diameters such as Φ38 mm and Φ48 mm.

3. Does installation require welding?

Most models use bolt assembly systems and do not require welding during installation.

4. Is customization available?

Customized connector dimensions and structures can be developed according to greenhouse pipe specifications and project requirements.
