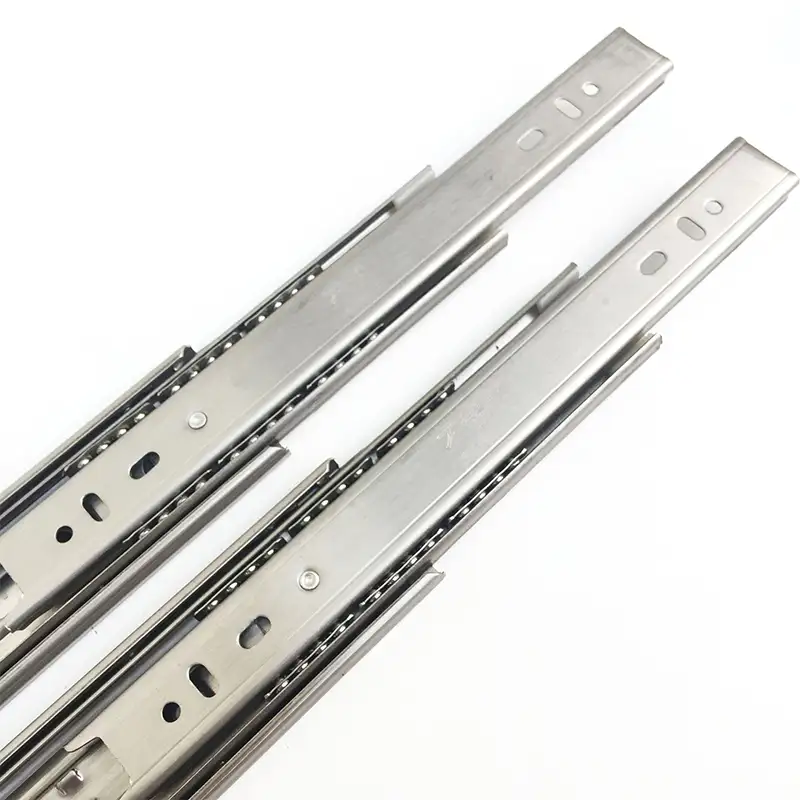

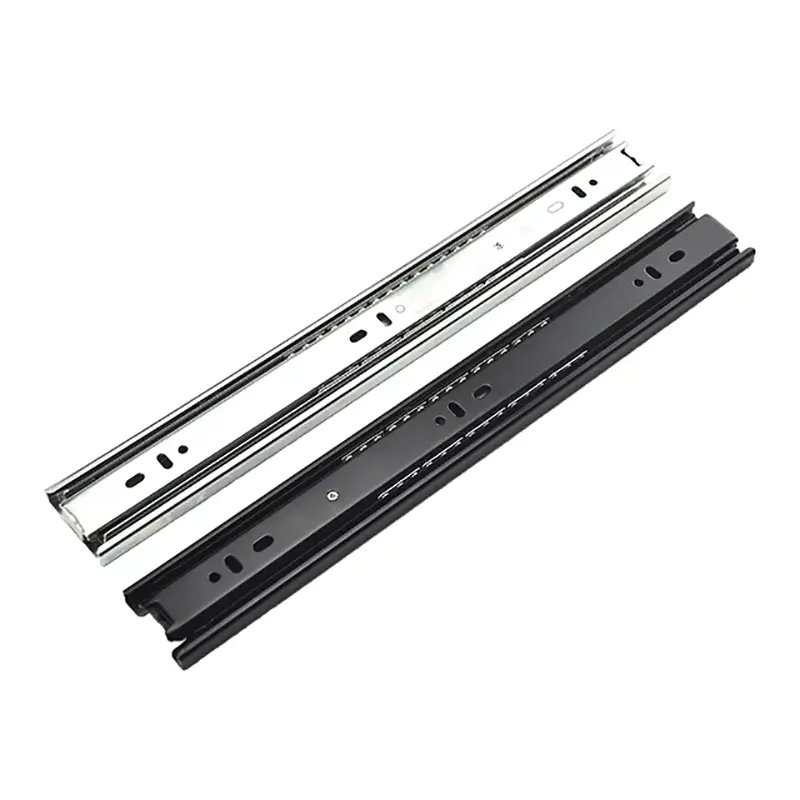

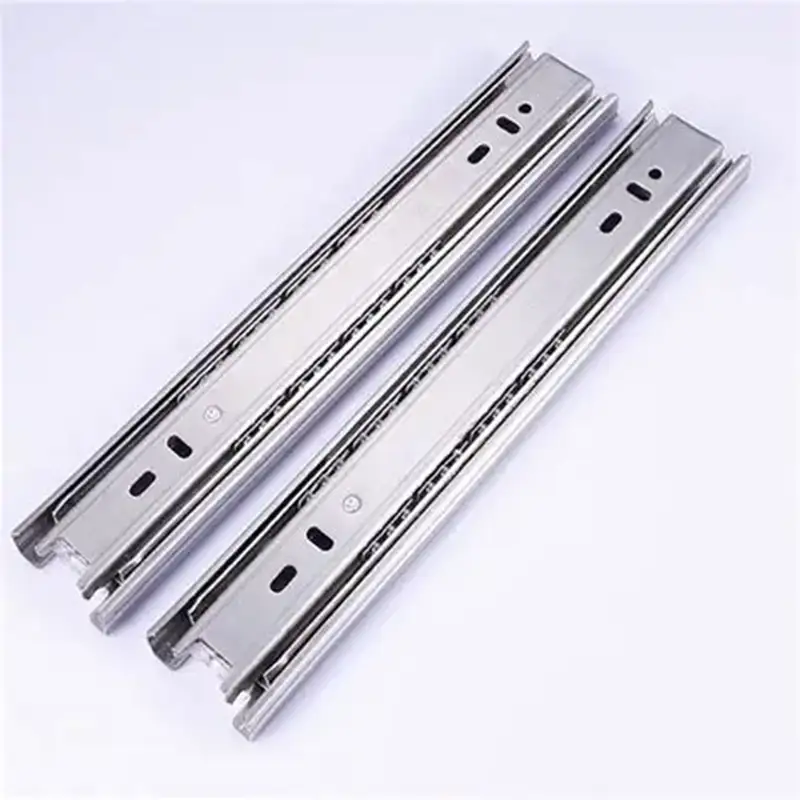

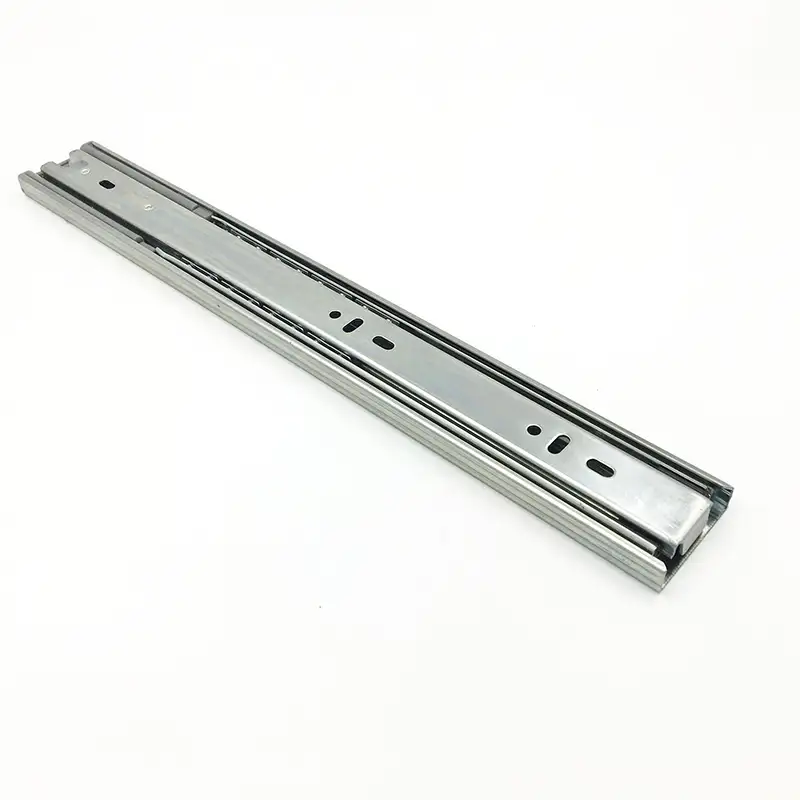

The S-SEN splitter drawer slide features a classic side-mounted design, installed between the drawer side panel and the cabinet body. It utilizes a ball-bearing sliding mechanism to achieve a stable and smooth opening and closing effect. In the furniture manufacturing industry, this type of drawer slide has become a common drawer solution for many furniture manufacturers due to its mature structure, simple installation, and wide applicability.
In furniture structural design, the smoothness and durability of a drawer system largely depend on the quality of the drawer slides. The S-SEN Drawer Slide employs a side-mounted ball-bearing slide structure. Through the cooperation of multiple slide sections and a ball-bearing mechanism, the drawer maintains a stable trajectory during opening and closing, while reducing frictional resistance and wobbling.
As a Chinese drawer slide supplier specializing in hardware products, we utilize mature stamping and assembly processes in our production, strictly controlling slide dimensions, steel thickness, and the ball-bearing system. This design allows the S-SEN Drawer Slide to be suitable for various furniture structures, including home furniture, office furniture, and commercial storage systems.
A drawer slide is a mechanical sliding component installed in a furniture drawer system, primarily used to support the drawer and guide its smooth sliding within the cabinet.
Side-mounted drawer slides are typically installed on the outside of the drawer side panel and the inside of the cabinet. Through the cooperation of rails and ball bearings, the drawer can be smoothly pulled out or pushed in.
Typical structures usually include:
Cabinet Rail
Drawer Rail
Middle Rail
Steel Ball Bearing
This structure allows the drawer to slide stably between the rails while maintaining good load-bearing capacity.
Side-mounted drawer slides are a mature hardware product with stable manufacturing processes, suitable for large-scale use in the furniture industry.
The S-SEN Drawer Slide maintains a simple structure during its design process. Through reasonable track design and ball bearing configuration, the drawer slide achieves stable performance while keeping costs under control.
This structure is particularly suitable for:
Mass production by furniture manufacturers
Engineering furniture projects
Furniture repair or upgrades
The installation method of side-mounted drawer slides is relatively intuitive; installation is completed simply by fixing the track to the cabinet body and the drawer side panel.
Installation Features include:
Clear installation location
Low requirements on drawer structure
Accommodates various drawer sizes
For furniture manufacturers, the S-SEN Drawer Slide can adapt well to different types of drawer structures.
The internal ball bearing structure of the drawer slides reduces frictional resistance during drawer sliding.
The benefits of this design include:
Smooth drawer opening and closing
Low sliding noise
In daily use, the stable slide structure can extend the lifespan of the drawer system.
Easy maintenance and replacement
Some models of the Drawer Slide are designed with a removable structure, allowing for convenient maintenance when repairs or replacements are needed.
This structure is practical in the following scenarios:
Office furniture maintenance
Furniture refurbishment
Engineering project repair
Structure
Composed of two rail sections:
Cabinet Rail
Drawer Rail
Features
Drawer can be pulled out to approximately 70%
Relatively lower load-bearing capacity
Simple structure
Applications
Suitable for light furniture, such as:
Simple desks
Home storage cabinets
Basic kitchen cabinets
Structure
Three-section rail structure:
Cabinet Rail
Middle Rail
Drawer Rail
Features
Drawer can be fully pulled out
Smoother sliding
Higher load-bearing capacity
This structure is currently the most common S-SEN Drawer Slide type on the market.
Applications
Common applications include:
Wardrobe drawers
Kitchen cabinets
File cabinets
Office furniture
An upgrade from standard three-section drawer slides, allowing drawers to extend beyond their original length.
Features
Drawers can be extended approximately 110%
Easy to access and clean items
Applications
File cabinets
Deep storage cabinets
Kitchen corner cabinets
| Item | Specification |
|---|---|
| Product Name | Drawer Slide |
| Brand | S-SEN |
| Mounting Type | Side Mounted |
| Material | Cold Rolled Steel |
| Steel Thickness | 0.8mm / 1.0mm |
| Length | 250mm – 600mm |
| Extension Type | Partial / Full Extension |
| Load Capacity | 25kg – 45kg |
| Surface Treatment | Zinc Plated / Powder Coated |
| Application | Furniture Drawer Systems |
When selecting a China Drawer Slide Manufacturer/Supplier/Factory, stable manufacturing capabilities and quality control are paramount.
Manufacturing Capability
Our factory boasts a variety of production equipment:
Precision stamping equipment
CNC machining equipment
Laser cutting equipment
These machines are used to produce S-SEN Drawer Slides and other hardware connectors.
Quality Control
During production, we conduct multiple inspections, such as:
Dimensional inspection
Sliding test
Load-bearing test
These inspection processes ensure product consistency in mass production.
Flexible Cooperation
We offer various cooperation options to meet customer needs:
Bulk order production
OEM/ODM customization
Project-specific supply
