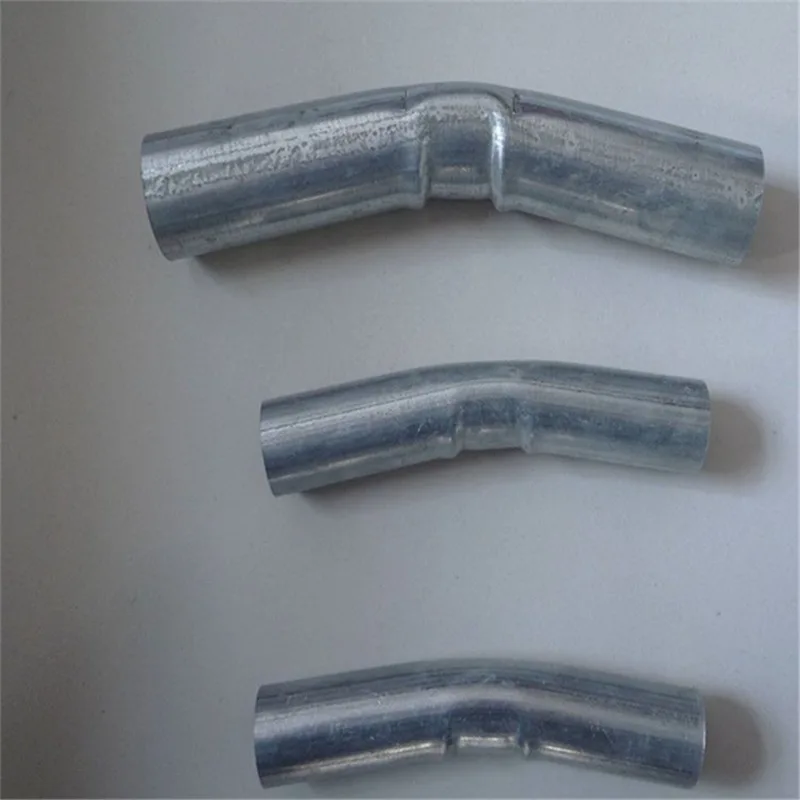

The Arch Pipe Connector serves as the critical mechanical link in modern greenhouse frame systems. Engineered by Cangzhou Shengsen Hardware Products Co., Ltd., these connectors are designed to replace traditional welding with a modular, high-strength bolted interface.
By utilizing the S-SEN metal's Arch Pipe Connector, growers and greenhouse contractors can ensure superior wind and snow load resistance while significantly reducing on-site installation time.
The following table outlines the standard configurations available for the Arch Pipe Connector series.
| Parameter | Specification Details |
| Brand | S-SEN Metal |
| Material Options | Hot-Dip Galvanized Steel / Zinc-Magnesium-Aluminum (ZMA) |
| Coating Thickness | Zinc Layer $\ge 60\mu m$ |
| Compatible Pipe Diameters | 20mm, 25mm, 32mm (Custom sizes available) |
| Connection Method | Bolted Assembly / Clamp-type Hoop / Spring Clip |
| Standard Hole Count | $\ge 2$ Bolt Holes per unit |
| Manufacturing Process | Precision CNC Stamping & Laser Cutting |
To meet diverse structural requirements, the Arch Pipe Connector is available in four specialized technical formats:
1. Bolted Assembly (Heavy Duty)
Design: Integrated modular design for pillar-to-arch connections.
Advantage: Supports complete disassembly and maintains high gutter flatness.
Best For: Multi-span commercial greenhouses requiring long-term structural integrity.
2. Clamp-type Hoop System
Design: Precision-stamped steel hoops.
Advantage: Fast standardization and rapid deployment without specialized tools.
Best For: Connecting arch rods to longitudinal rods in single-span structures.
3. Spring Clip & Welded Variants
Spring Clip: Cost-effective, "H-shaped" design for auxiliary structures or temporary shelters.
Welded Type: Triangular truss configurations providing maximum static load support for permanent installations.
Based in Nanpi County—the "Hardware Capital of China"—S-SEN Metal operates under a rigorous ISO 9001 certified quality management system. Our facility utilizes advanced CNC machine tools and laser cutting technology to ensure every Arch Pipe Connector meets exact tolerances.
How does the Arch Pipe Connector handle corrosion?
We utilize hot-dip galvanized steel with a zinc layer $\ge 60\mu m$. For extreme environments, we offer Zinc-Magnesium-Aluminum coatings which provide 5-10x the corrosion resistance of standard galvanization.
Can the connector spacing be adjusted?
Yes. The Arch Pipe Connector is compatible with adjustable spacing (typically 0.5m to 1.4m) to accommodate different greenhouse spans and local snow load requirements.
Is professional welding required for installation?
No. Most Arch Pipe Connector models are designed for "wrench-only" assembly, allowing a single unit to be installed in under 5 minutes, significantly lowering labor costs.
